SS316L wedge wire screen nozzle for water cleaning

Product Code: 2734
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of SS316L wedge wire screen nozzle for water cleaning


    Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Application for SS316L wedge wire screen nozzle for water cleaning:

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for SS316L wedge wire screen nozzle for water cleaning:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

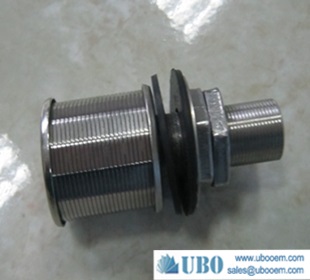

SS316L wedge wire screen nozzle for water cleaning

Specification of the SS316L wedge wire screen nozzle for water cleaning

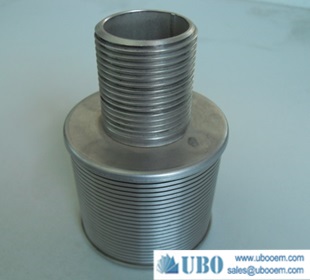

SS316L wedge wire screen nozzle for water cleaning

  Slot Dimension Flow area/mm2
(Slot:0.2mm)
D H L M L1
1 0.2-0.5 45 30 180 25 According to custom’s request 330
2 45 40 190 25 450
3 53 40 190 30 500
4 53 50 200 30 630
5 53 40 235 32 500
6 57 40 190 32 605
7 57 50 200 32 750

Production And Sales of SS316L wedge wire screen nozzle for water cleaning


SS316L wedge wire screen nozzle for water cleaning
