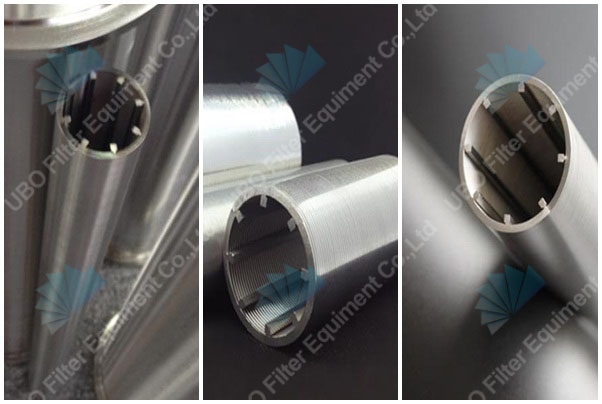

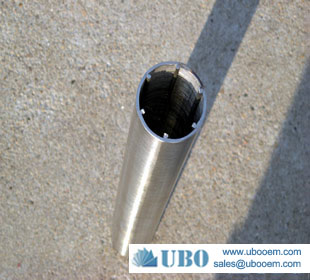

SS 316 thru-tubing screen for water softener and purifier

Product Code: 2688
Category:Wedge Wire Screen Cylinders
Material:stainless steel316
Properties:wedge wire screen
Application:for water softener and purifier

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of SS 316 thru-tubing screen for water softener and purifier


SS 316 thru-tubing screen  (V-shaped wire). The Industrial wedge wire wrapped screen have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

SS 316 thru-tubing screen for water softener and purifier



Features of SS 316 thru-tubing screen for water softener and purifier



-- 316L stainless steel diffusion bonded media

-- Alloy 20 available for CRA application

-- Rigid, durable media

-- Fixed pore structure

-- High permeability media

-- Available in a wide range of micron ratings

-- Custom screen lengths are available upon request



Applications of SS 316 thru-tubing screen for water softener and purifier



Filter tubes or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.

SS 316 thru-tubing screen for water softener and purifier

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.

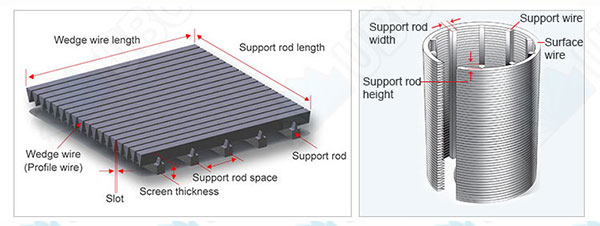

Specification of the SS 316 thru-tubing screen for water softener and purifier


SS 316 thru-tubing screen for water softener and purifier


wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.


Production And Sales of SS 316 thru-tubing screen for water softener and purifier


SS 316 thru-tubing screen for water softener and purifier
