Internally-fed rotary screen

Product Code: 2601
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Internally-fed rotary screen


UBO supplies a wide range of Internally-fed rotary screen, which is specially designed keeping in mind the requirements of paper industries. Pressure Screen Basket is the heart of the approach system of the modern paper machine with its special design and high precision in processing. The pre-net screen achieves its non-pulse operation. It can disperse both fiber filler and paper making aid and further fluidize them. It can also screen out remaining impurities in the stock and impurities from the broke system. It reaches its function of guaranteeing the quality of the stock. It can also meet all the operational requirements of the paper machine headbox.

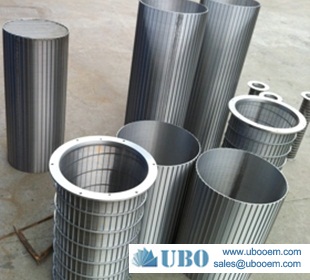

Internally-fed rotary screen



Applications of Internally-fed Rotary Screen



The welded ring sand control wedge wire screen pipes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.



Features of Internally-fed Rotary Screen



-- Excellent roundness

-- Very good slot width precision

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bars

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required

Internally-fed rotary screen

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.

Specification of the Internally-fed rotary screen



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Internally-fed rotary screen



Internally-fed rotary screen
