Hub Lateral Assemblies for Sand Filter

Product Code: 2703
Category:Header-Lateral
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Hub Lateral Assemblies for Sand Filter


Hub lateral assemblies for sand filter is widely used in the under draining applications with the features of effective filtering and screening performance. Hub lateral assemblies are a typical screen type used in the under draining.


Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Applications of Hub Lateral Assemblies for Sand Filter

Wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features of Hub Lateral Assemblies for Sand Filter

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation.

3) Reduce the abrasion of the pump.

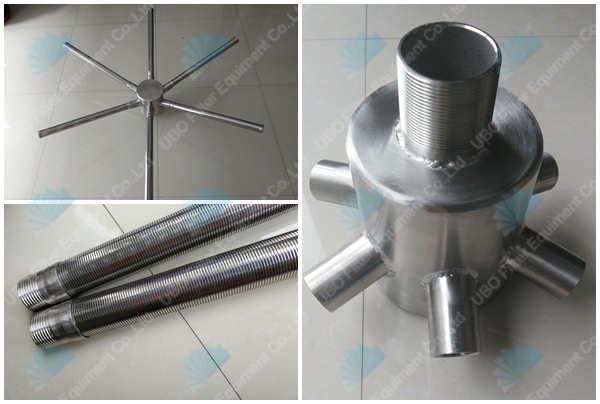

Hub lateral assemblies for sand filter

Specification of the Hub Lateral Assemblies for Sand Filter


Hub lateral assemblies for sand filter

Nominal Diameter

Branch Diameter

Branch Qty

Specification of Flange

1500

45-76

4-12

DN100

2000

45-76

4-12

DN125

2500

57-89

4-12

DN150

3000

57-108

4-12

DN200

3200

57-108

4-12

DN200


The above specifacation are our nomal products, usually, we design according to client's request.

Production And Sales of Hub Lateral Assemblies for Sand Filter


Package:in wood case.

Delivery Time: 5-25 days.
