Hub lateral assemblies for carbon filter

Product Code: 2705
Category:Header-Lateral
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Hub lateral assemblies for carbon filter


The stainless steel hub lateral can be designed with slot openings and wires running radially onthe outside for flow from outside to inside. Or they can be positioned axially on the inside of the cylinder for flow from inside to outside.

The Application of Hub lateral assemblies for carbon filter

The water distributor are widely used in ion exchange equipment, medium filter and sand filter filter, the resin tank, silicate and chemical industry, water treatment industry

Working Principle of Hub lateral assemblies for carbon filter

Water device is mainly composed of mother pipe (center) of several wire pipe, via adjusting the number of size, type and distribution manifold, we can achieve excellent collection and distribution process. Water distribution device which can realize uniform and effective allocation and collection need to deal with liquid or gas.

Features of Hub lateral assemblies for carbon filter

1.Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of well.

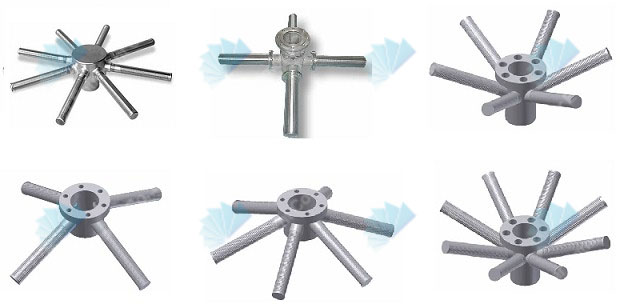

Hub lateral assemblies for carbon filter

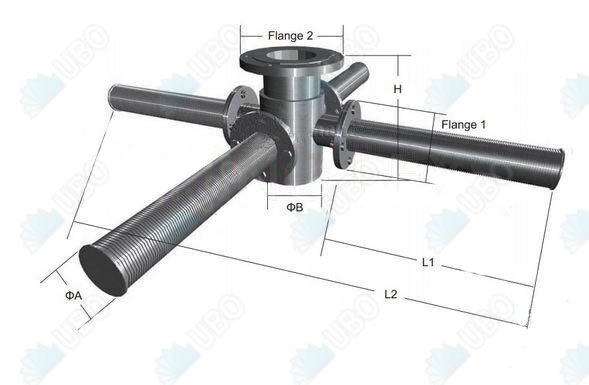

Specification of the Hub lateral assemblies for carbon filter


Hub lateral assemblies for carbon filter



Nominal     diameter

Branch diameter

Branch Qty

The specification of the nominal flange

1500

45-76

4-12

DN100

2000

45-76

4-12

DN125

2500

57-89

4-12

DN150

3000

57-108

4-12

DN200

3200

57-108

4-12

DN200

Production And Sales of Hub lateral assemblies for carbon filter

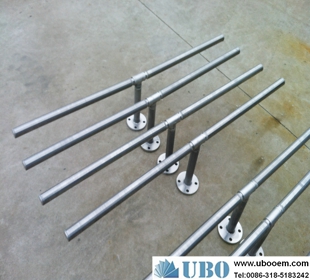

Hub lateral assemblies for carbon filter
