AISI316L Wire Wrapped Geothermal Water Well Screen

Product Code: 2722
Category:Wedge Wire Screen Cylinders
Material:AISI316L
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of AISI316L Wire Wrapped Geothermal Water Well Screen


AISI316L Wire Wrapped Geothermal Water Well Screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.


The warp is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability, long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

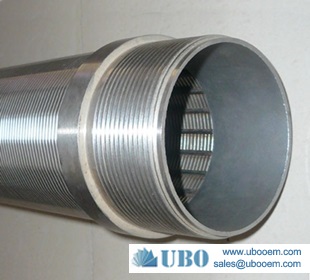

AISI316L Wire Wrapped Geothermal Water Well Screen



Applications of AISI316L Wire Wrapped Geothermal Water Well Screen



Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.



Advantages of AISI316L Wire Wrapped Geothermal Water Well Screen



* Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.

* High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.

* Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.

* Low pressure-drop.

* Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.

* High efficiency: continuous slot opening.

* Large flow rate: V shaped profile wire ensures a uninterrupted flow.

AISI316L Wire Wrapped Geothermal Water Well Screen

Specification of the AISI316L Wire Wrapped Geothermal Water Well Screen


AISI316L Wire Wrapped Geothermal Water Well Screen

Wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.

Production And Sales of AISI316L Wire Wrapped Geothermal Water Well Screen


AISI316L Wire Wrapped Geothermal Water Well Screen
