|Properties:||wedge wire screen|
|Application:||for industrial and municipal water|

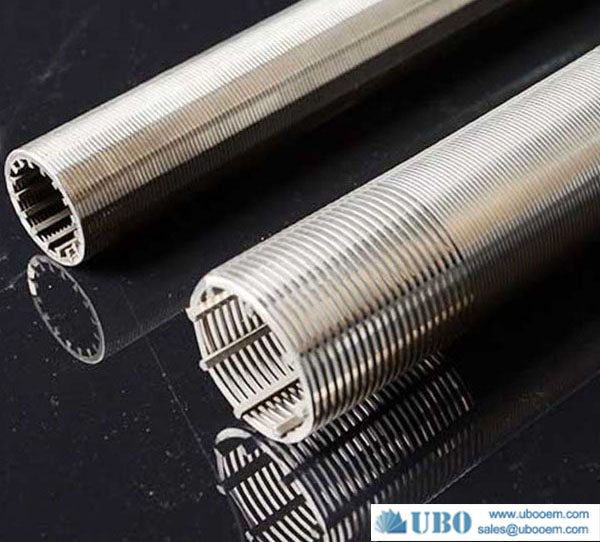

AISI316L Water Well Screen Welding for industrial and municipal water is a pipe base wire wrapped screen available in several designs, customized to well demands.
These screens are used in stand-alone completions with well sorted formations or in combination with gravel pack completions.
application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.
Non-clogging surface .
Large open area .
Low pressure drop .
Hydraulic efficiency .
High flow rates .
Mechanical strength .
Easy cleaning .
1. The water well screens have astructure and high open area;as well as accurate slot dimension.
2. Ladder-like wire welded screens have the features of easy backwashing,last long, satefy,heat -resising,anti-corrosive and reliability as well as low comprehensive cost.
3. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

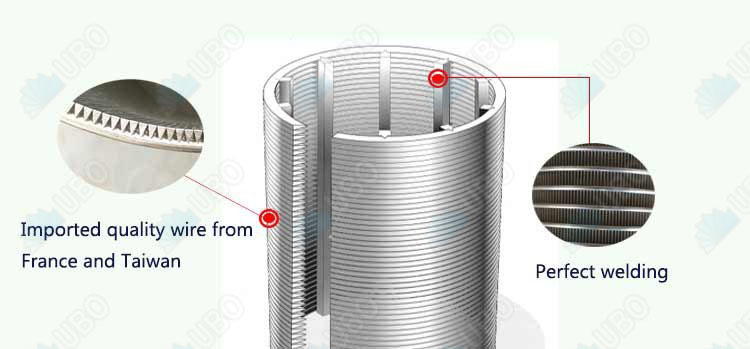

4. V shaped profile wire which avoids clogging and ensures an uninterrupted flow.

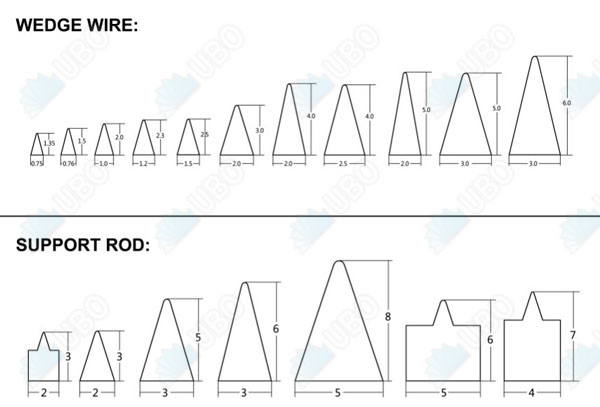

|Specification (wedge wire):||
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|Specification (support rod):||
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
|Note:||other specifications available as per request|
|Slot size||0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.|
|Material:||galvanized low carton (LCG), stainless steel (304,316 etc.)|
|Length||up to 6 meters.|
|Diameter||from 25mm to 1200mm.|

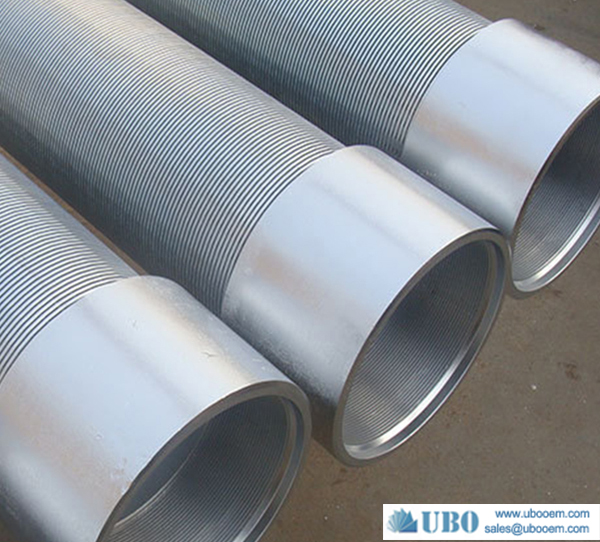

|End connection||Plain beveled ends, flanged or threaded couplings|
