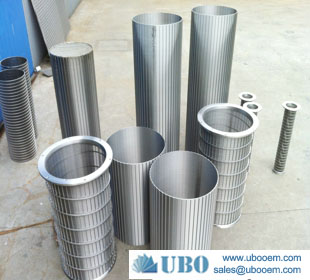

wedge wire screen for surface water

Product Code: 3016
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of wedge wire screen for surface water


The advanced wedge wire screen for surface water technology provides superior weld strength and accurate slot openings. The accurate V-shaped wires provide free flow and optimal sand control.


A large number of support rods increases tensile strength and achieves rounder and stronger screens.
The screen jacket is fully pickled and passivated for maximum corrosion resistance.

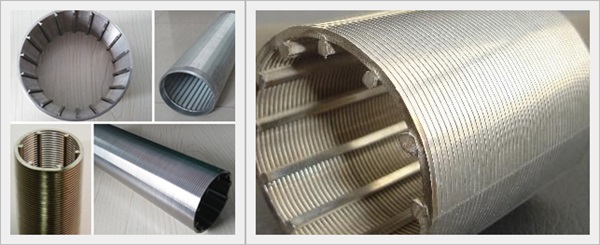

wedge wire screen for surface water

Application of wedge wire screen for surface water

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.

Used for fiber removal in Starch industry.

Advantages of wedge wire screen for surface water

The Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

Product Characteristics of wedge wire screen for surface water

1) It has high mechanical strength, can bear large pressure drop.
2) It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3) The wedge type slot can improve backflushing and regeneration performance.
4) It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Specification of the wedge wire screen for surface water

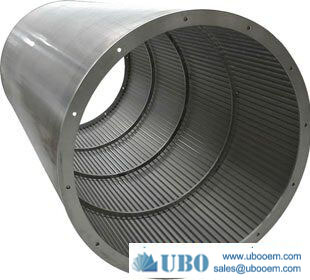

wedge wire screen for surface water

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
