sintered metal powder cylinder filter

Product Code: 1609
Category:Cylinder Filter
Material:Stainless Steel wire mesh,sintered metal Powder
Properties:Stainless Steel Filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of sintered metal powder cylinder filter


Ubo manufactures various kinds of sintered metal powder cylinder filter in forms of filter cylinder, filter cartridge, filter tube, filter candle, filter sheet, filter disc, sparger, diffusion aerator and so on. By cold isostatic pressing or co-axial pressing via powder metallurgy process.

sintered metal powder cylinder filter can be bonded to the porous parts by welding (TIG welding), machining or directly welded during sintering process.

sintered metal powder cylinder filter Available materials are: Stainless steel 316/316L, 304/304L, 310, 904, Titanium, Inconel, Hastelloy, Nickel, Monel and other alloys. etc. On request.

sintered metal powder cylinder filter pore size can be adjusted by suitable selection of the powder size fraction and the process parameters.

Main Advantages  of sintered metal powder cylinder filter

1. Good shape stability
2. High strength and good integrity
3. Controllable pore sizes and porosity
4. Good permeability
5. Good corrosion and thermal resistance
6. Easy to be made into complicated shapes

Applications of sintered metal powder cylinder filter


1. Gas and liquid filtration
2. Solid catalyst recovery
3. Filtration of slurry oil and other petrochemical products
4. Fluidization
5. Powder conveying
6. Aeration and other applications in various industrial fields

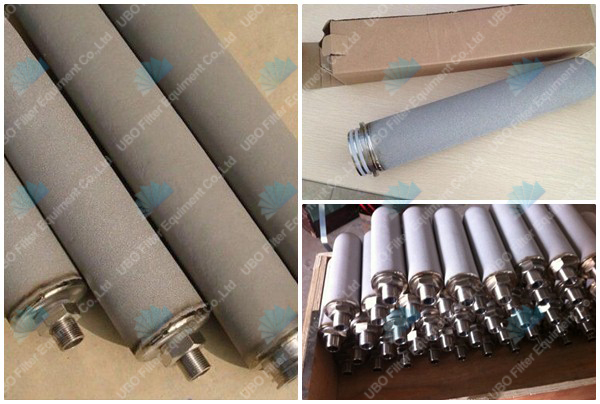

sintered metal powder cylinder filter



Specification of the sintered metal powder cylinder filter


Model

          Structure

Filter rating (u)

Thickness(mm)

Weight(kg/sqm)

Porosity(%)

B2-0.5T

Filter layer+60

2—100

0.5

1.6

60

B3-0.7T

60+Filter layer+60

2—100

0.7

2.4

56

B3-1.0T

50+Filter layer+20

20—200

1.0

3.3

58

B3-2.0T

Filter layer+20+8.5

20—250

2.0

6.5

58

B4-1.0T

60+Filter layer+40+20

2—200

1.0

4.4

44

B4-1.7T

40+Filter layer+20+16

2—200

1.7

6.2

54

B5-1.9T

30+Filter layer+60+20+16

2—200

1.9

5.3

52

B5-2.5T

80+Filter layer+30+10+8.5

2—200

2.5

8.8

55

B7-2.0T

50+Filter layer+40+20+40+Filter layer+50

2—150

2.0

7.4

58



Production And Sales of sintered metal powder cylinder filter
