Sintered Metal Powder Filters

Product Code: 3059
Category:Sintered Powder Filter
Material:SS, bronze, nickel, titanium, high temperature alloy powders .
Properties:Sintered filter
Application:It can be used for filtering gas, liquid, and fuel oil. It is widely applied in petroleum, chemical, tractor, airplane and ship industries

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

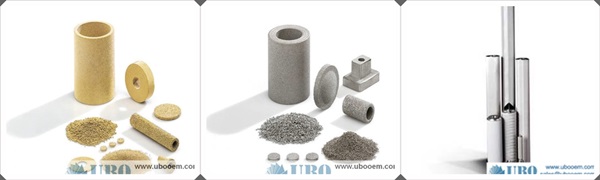

Description of Sintered Metal Powder Filters


   The stainless steel filter element adopts sintered stainless steel fiber felt, has high-pressure, high temperature and chemical corrosion resistance. It also has good air permeability, high dirt holding capacity and long-life service time can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.
    It can be made of stainless steel powders, bronze powders, nickel powders, titanium powders, high temperature alloy powders. We also can provide other kind of material if you required.

Liquid filtration for Sintered Metal Powder Filters:

1. The pharmaceutical industry, various syrup filters, injection water injections saline injections without filtration.
2. Industrial water, water, gas water clarify degerming.
3. Beverage, food, brewing industry filter.
4. Electronics, optical lens grinding high water.
5. The chemical industry pH liquid filtration Alcohol recovery

Feature for Sintered Metal Powder Filters:

The filter is made by sintering fine metal particles with special process, which has good permeability, high precision, excellent strength and ductility. It has better performance than that filter made of paper, copper wire and other fiber cloth, and easy to removal and clean.

Technical Data for Sintered Metal Powder Filters:

a. It has equally surface filtering performance for 0.1~100μm particles.
b. It can be continuously filtering under -200~900oC temperature.

Sintered Metal Powder Filters

Specification of the Sintered Metal Powder Filters


Filtering
Level
Filtration
Precision
um
Maximum
Hole
Diameter um
Permeability
M3/h.㎡.kpa

Thickness
mm
Compression
Strength
Mpa/cm2
S9
0.2
2.5
1.5
3
3.0
S8
0.5
4
3
3
3.0
S7
1.5
6
5
3
3.0
S6
2.5
10
15
3
3.0
S5
5
15
40
3
3.0
8
20
80
3
3.0
S4
10
30
120
3
3.0
S3
28
60
250
3
3.0
35
80
500
3
3.0
S2
40
100
800
3
3.0
S1
65
160
1000
3
3.0

Production And Sales of Sintered Metal Powder Filters


Sintered Metal Powder Filters

Packaging Details: inside with bubble bags and then in wooden casa or as your request.

Delivery Detail: 5-15days after receive the paymeng
