Stainless steel pleated filter cartridge for liquids

Product Code: 1584
Category:Pleated Filter
Material:Stainless Steel wire mesh304,316,316L
Properties:Stainless Steel Filter
Application:Filtration,liquids Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Stainless steel pleated filter cartridge for liquids


SS Pleated filter cartridges are the perfect choice for high temperature (250°C & above) & high viscosity applications. MOC is SS 304 or SS 316 or SS 316L. They offer excellent reliability for critical applications and have high dirt holding capacity. The cartridges are designed for cleanable and reusable applications so as to eliminate frequent cartridge change out.

Feature of Stainless steel pleated filter cartridge for liquids

100% Stainless steel
Superior chemical compatibility
Excellent mechanical strength
High Thermal tolerance
High dirt holding capacity

Application of Stainless steel pleated filter cartridge for liquids

Corrosive gas & liquid filtration
Steam filtration
Beverage industry
Solid catalyst recovery
Filtration of slurry oil
Filtration of petrochemical products
High temperature gas filtration
Vent applications
Chemical reagents
Fluidization
Sparging
Highly viscous fuids

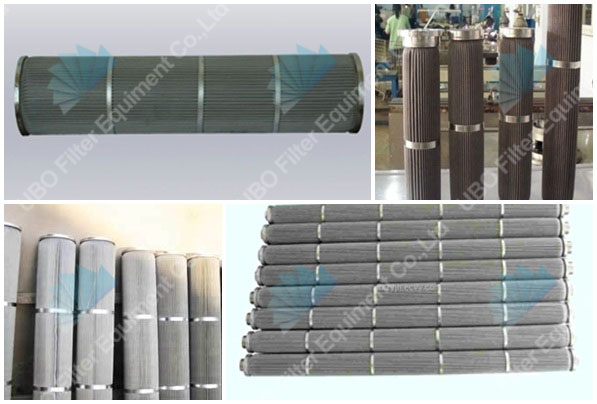

Stainless steel pleated filter cartridge for liquids

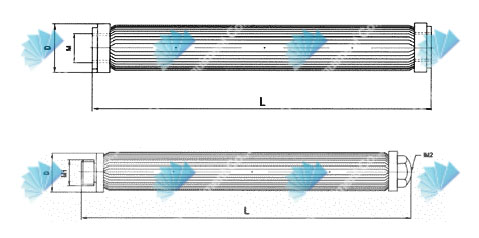

Specification of the Stainless steel pleated filter cartridge for liquids


CODE D (mm) L (mm) (m1)
(m2)
AREA (m2)
CF-35A 35 207 3/4"-16UNF OR 20×1.5   0.07
CF-35B 35 425 3/4"-16UNF OR M20×1.5 3/16"-24UNC OR M6 0.15
CF-35C 35 485 3/4"-16UNF OR M20×1.5 3/16"-24UNC OR M6 0.17



CODE D (mm) L (mm) (m) AREA (m2 )
CF-60A 60 500 M33×1.5 0.5
CF-60B 60 400 M33×1.5 0.4

Stainless steel pleated filter cartridge for liquids

Production And Sales of Stainless steel pleated filter cartridge for liquids
