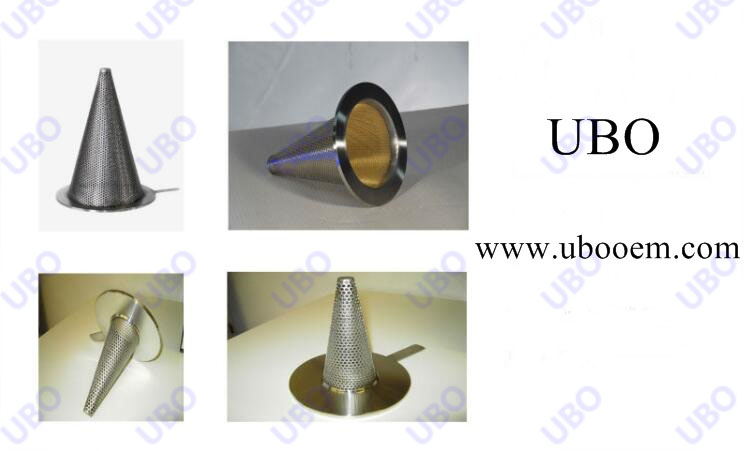

Stainless Steel Perforated Conical Strainer

Product Code: 2097
Category:Cone Filter&Strainer
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:cone filter&strainer
Application:Filtration,transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Stainless Steel Perforated Conical Strainer


Conical Strainer is also called temporary conical strainer,belonging to pipeline coarse filter series.
It is used as pipeline strainers that are designed for new system start-up,removing any coars,debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.



Usage for Stainless Steel Perforated Conical Strainer in Pointed Cone Shape



It is used as pipeline strainers that are designed for new system start-up,removing any coars,debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.


Features for Stainless Steel Perforated Conical Strainer in Pointed Cone Shape


-- compact structure, large filtration capacity

-- small pressure loss, wide application, easy to maintain

-- acid and alkali resistance, high temperature resistance

-- abrasion resistance, strong stress resistance

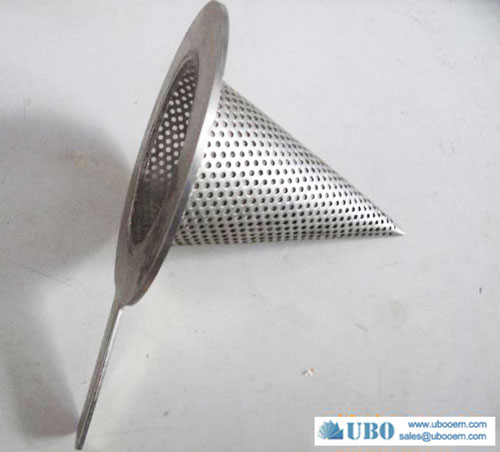

Conical strainers in pointed cone shape

Specification of the Stainless Steel Perforated Conical Strainer


Types according to processing mode:

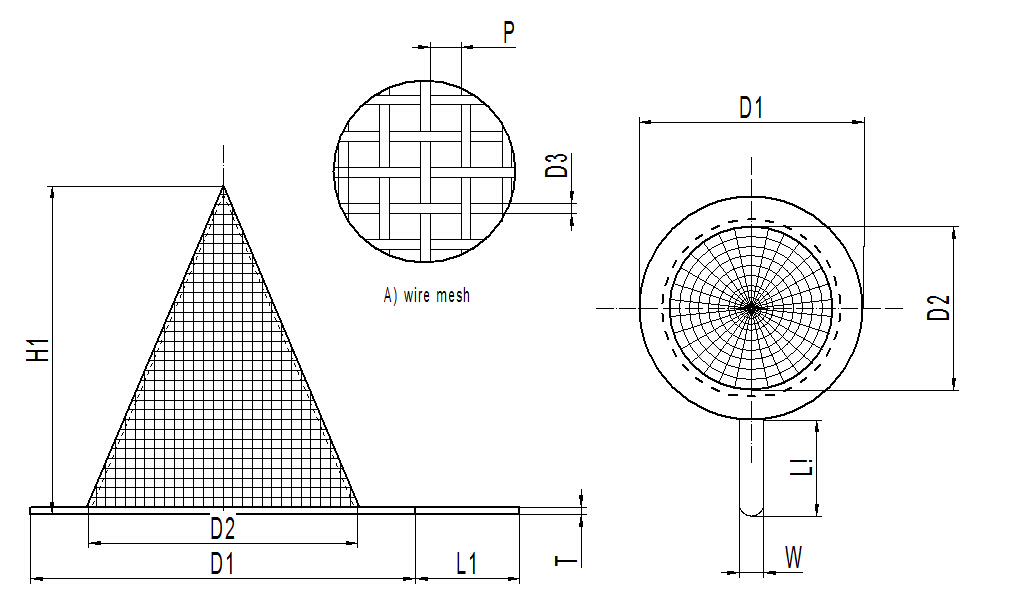

1.only Stainless Steel Wire Mesh (Standard Size: 10,20,30,40,60,80& 100 Mesh or as your request)
Conical strainers in pointed cone shape

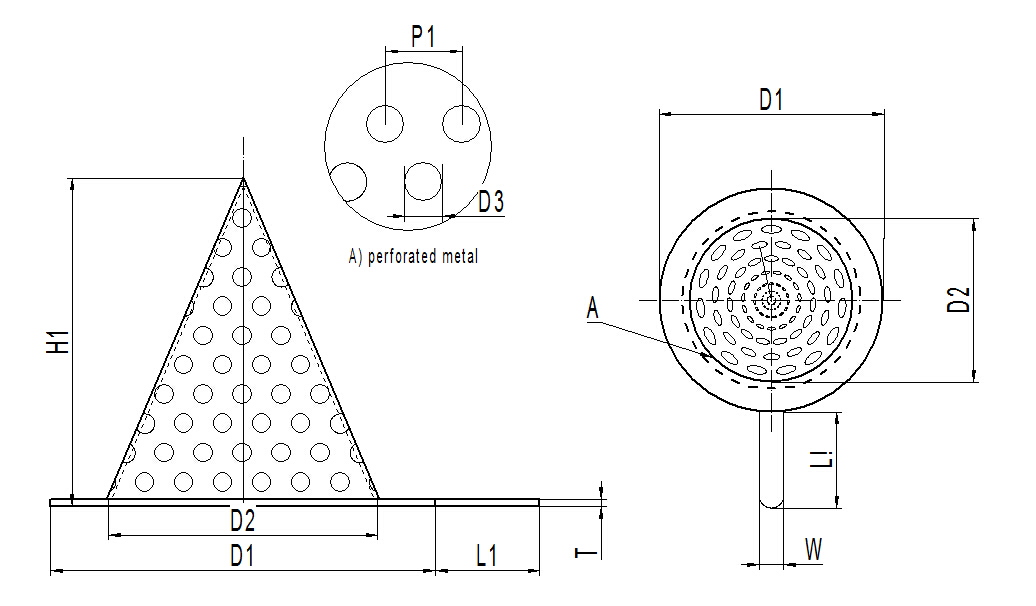

2.only perforated metal (Standard size:1/8" diameter holes with 3/16" pitch or as your request.)

Conical strainers in pointed cone shape

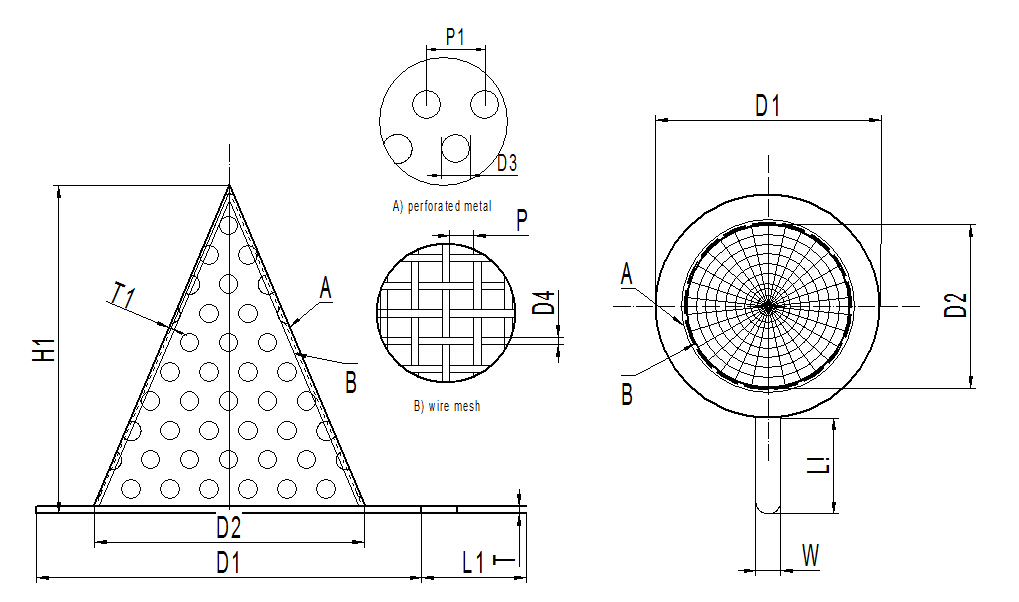

3.woven wire mesh +perforated metal

Conical strainers in pointed cone shape


Specification for Conical strainers in pointed cone shape :





flange size (inch )


pipe size
inside diameter
outside diameter (class 150-1500)
500/300
300
600
900
1500
3/4
5/8
2-1/8
2-1/2
2-1/2
2-5/8
2-5/8
1
3/4
2-1/2
2-3/4
2-3/4
3
3
1-1/2
1-1/4
3-1/4
3-5/8
3-5/8
3-3/4
3-3/4
2
1-3/4
4
4-1/4
4-1/4
5-1/2
5-1/2
2-1/2
2-1/4
4-3/4
5
5
6-3/8
6-3/8
3
2-3/4
5-1/4
5-3/4
5-3/4
6-1/2
6-3/4
4
3-3/4
6-3/4
7
7-1/2
8
8-1/8
5
4-5/8
7-5/8
8-1/4
9-3/8
9-5/8
9-7/8
6
5-1/2
8-5/8
9-3/4
10-3/8
11-1/4
11
8
7-3/8
10-7/8
12
12-1/2
14
13-3/4
10
9-3/8
13-1/4
14-1/8
15-5/8
17
17
12
11
16
16-1/2
17-7/8
19-1/2
20-3/8
14
12-1/4
17-3/8
18-7/8
19
20-3/8
22-5/8
16
14
20-1/8
21
21-7/8
22-1/2
25-1/8
18
15-3/4
21-1/4
23
23-3/4
25
27-5/8
20
17-1/2
23-1/2
25-1/2
26-5/8
27-3/8
29-5/8
24
21-1/4
27-7/8
30-1/4
30-7/8
32-7/8
35-3/8
30
27-1/4
34-3/8
37-1/8
37-7/8
39-3/8
-
36
33
40-7/8
43-5/8
44-1/8
46-7/8
-

Production And Sales of Stainless Steel Perforated Conical Strainer

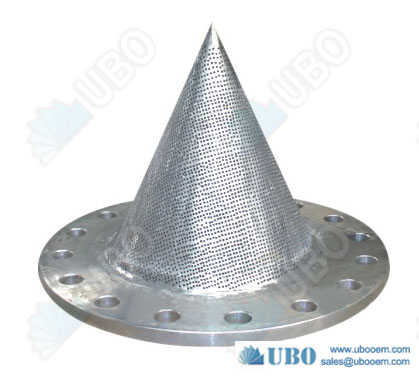

Conical strainers in pointed cone shape
