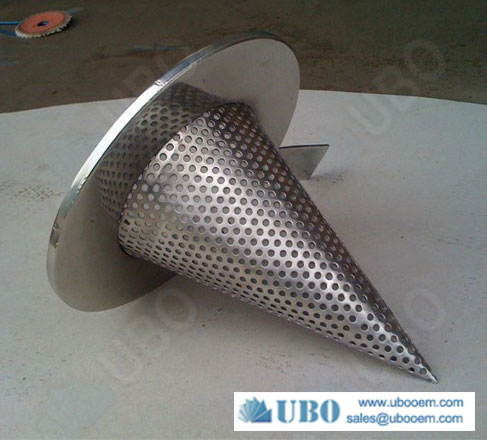

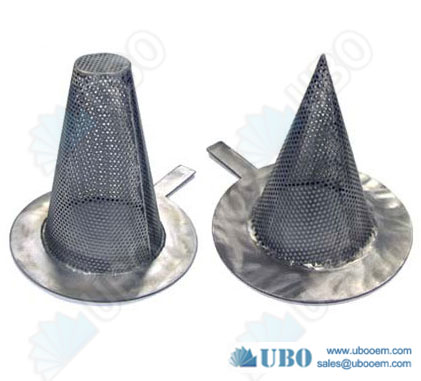

Standart conical strainers

Product Code: 2090
Category:Cone Filter&Strainer
Material:Stainless steel 302,304,304L,316,316L
Properties:cone filter&strainer
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Standart conical strainers


1. Standart conical strainers Material classification: H80 Brass, SUS304 Stainless Steel

 2. Standart conical strainers Features: easy to use, attractive and durable, wear-resistant, heat-resistant, suitable for exact mesh analysis, test, measure, classification of granular material.

 3. Standart conical strainers Specifications:

1) Pattern: Φ75/ Φ100/ Φ127/ Φ200/ Φ203/ Φ300/ Φ400/ Φ600

2) Thickness: 0.6-0.7 mm

3) Mesh Size: 2.36mm-0.02mm



4. Standart conical strainers Application: widely used in abrasive, building materials, chemical, pharmaceutical, metallurgy industries, etc.

5.Standart conical strainers  Note:Can be customized according to customer requirements





Frame diameters are avaliable as Φ200mm and Φ300mm.

Aperture sizes are as per 38μm, 45μm, 53μm, 63μm, 75μm, 80μm, 90μm, 100μm, 106μm, 125μm, 150μm, 160μm, 180μm, 200μm, 212μm, 250μm, 300μm, 315μm, 355μm, 400μm, 425μm, 500μm, 600μm, 630μm, 710μm, 800μm, 850μm, 1.00mm, 1.18mm, 1.25mm, 1.40mm, 1.60mm, 1.70mm, 2.00mm, 2.36mm, 2.50mm, 2.80mm, 3.35mm, 4.00mm, 4.75mm

Standart conical strainers

Specification of the Standart conical strainers


NOM. SIZE 2 2 1/2 3 4 5 6 8
OD 150 3 7/8 4 5/8 5 1/8 6 5/8 7 1/2 8 1/2 10 3/4
300 3 7/8 4 5/8 5 1/8 6 5/8 7 1/2 8 1/2 10 3/4
600 4 1/8 4 7/8 5 5/8 6 7/8 9 1/4 10 1/4 12 3/8
ID 1 3/4 2 1/4 2 3/4 3 1/2 4 5/8 5 1/2 7 1/8
H 4 1/2 5 1/2 6 1/2 8 1/2 10 1/2 13 17
L 3 1/2 4 4 1/2 6 7 1/2 9 12
NOSE 1 1 1 2 2 2 2



NOM. SIZE 10 12 14 16 18 20 24
OD 150 13 1/8 15 7/8 17 1/2 20 21 3/8 23 5/8 28
300 13 1/8 15 7/8 17 1/2 20 21 3/8 23 5/8 25
600 15 1/8 17 3/8 19 1/8 22 13 7/8 26 5/8 30 7/8
ID 9 10 7/8 12 5/8 14 1/2 16 3/8 18 3/8 22 3/8
H 21 25 26 29 1/2 33 37 44
L 14 16 1/2 17 19 21 24 28
NOSE 3 3 4 4 6 6 10

Production And Sales of Standart conical strainers


Standart conical strainersStandart conical strainers
