Sintered WIre Mesh Candle Filter

Product Code: 2297
Category:Cylinder Filter
Material:Stainless steel 316L
Properties:cylinder filter
Application:Filter (chemistry),Oil filter,Water Filter

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

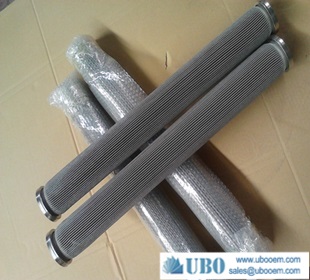

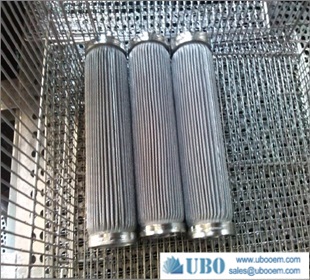

Description of Sintered WIre Mesh Candle Filter


     Sintered WIre Mesh Candle Filter filter elements are made up of several layers of mesh sintered together to form an integrated porous metal element. The inner mesh is of very fine gauge and determines filtration accuracy (particle size). This is overlaid with coarse support mesh layers and protective outer mesh layers. Various combinations are used according to applications. This is a typical surface filtration type, and solid contaminants are retained on the surface of the filtration control layer. This facilitates high filtration accuracy and makes backflushing very easy. ubo offers excellent heat, corrosion and pressure resistance. There is no delamination or mesh distortion, and it can be machined. Its outstanding durability and cleanability allow semi-permanent reuse

Application for Sintered WIre Mesh Candle Filter:

It can be used for filtering gas, liquid, and fuel oil. It is widely applied in petroleum, chemical, tractor, airplane and ship industries, and also applied as the filter element of pneumatic and hydraulic circuit.

Advantage for Sintered WIre Mesh Candle Filter:

Besides those mentioned above, MWC elements have also superior corrosion andabrasion resistance,
especially suitable for fine filtration of high temperature, high pressure and viscous fluids.In comparison
to the particle size distribution of powder materials, the range of diameters of the fibres is very uniform,
resulting in an equally narrow range of pore diameters. This ensures an optimal ratio of filter grade to permeability.

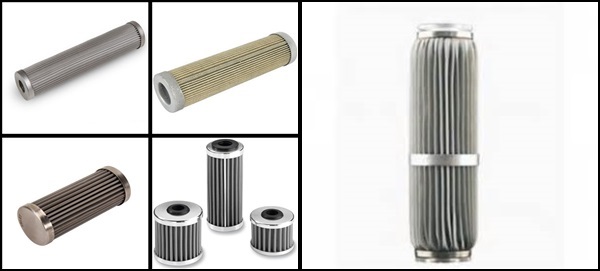

Sintered WIre Mesh Candle Filter

Specification of the Sintered WIre Mesh Candle Filter


Sintered WIre Mesh Candle Filter

Length (mm)

Diameter (mm)

Filtration  area  (m²)

Accuracy (µm)

Media

35~1500
15~120
0.01~0.2

2~200µm

SS wire mesh Stainless steel sheet

Production And Sales of Sintered WIre Mesh Candle Filter


Sintered WIre Mesh Candle Filter
