SS Pleated filter cartridge

Product Code: 2337
Category:Pleated Filter
Material:Stainless steel
Properties:stainless steel filter
Application:Filtration of liquor to make it cleaner and less alcoholic

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of SS Pleated filter cartridge

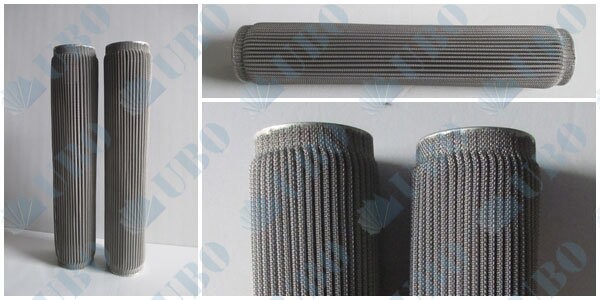

SS Pleated filter cartridge
1. Material: Stainless steel 316L is the most common used material, the standard specification is 500*1000*1.7mm and filtering value is 2-300um; Stainless steel sintered fiber web is a kind of multiport deep filter media, sintered with stainless steel fiber at the high temperature. The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeat after chemical cleaning, etc.
2. Features of SS Pleated Filter Cartridge:
2.1 Stainless steel weaving wire cloth is weaved with stainless steel wire. These filter elements have such characteristics of good strength, fastness, easy cleaning, high temperature resistance, low cost, etc;
2.2 Can be backwashed, so it can extended production life;
2.3 Inner and outer framework can protect the cartridge for a long time.
3. Typical application of SS Pleated Filter Cartridge:
3.1 Filtration of liquor to make it cleaner and less alcoholic;
3.2 Filtration of organic solvent to take away the pigments;
3.3 Filtration of water to take away chlorine, smells and pigments.
SS Pleated Filter Cartridge is mainly used in filtration of high molecular polymer, drug, hydraulic oil, water treatment, hot gas, etc.

Ubo is specialized in producing and distributing stainless steel filter elements,filter element, filter disc, sintered  filter,filter strainer,polymeric filter,basket filter, wire mesh filter,wedge wire screen
Welcome to contact us for more information and cooperation.0086-0311-83289301

Announcement:
If you can envision it,We can supply it. TEL:0086-0311- 83289301 E-mail:sales@ubooem.com
 Ubo will do everything possible to provide exact and full product information based on metal mesh for your information.
 In order to give customer a clear image of the product,Ubo has taken some pictures, customer can dowmload for reference but using our picture for business is forbidden.
 Due to technique and other factors,product image might be slight different to the products itself,in case everything will follow the products.
Ubo appreciate any suggestion on our product information or picture or anything else.

Specification of the SS Pleated filter cartridge


Available in a wide variety of sizes and shapes.

Style and specifications can be designed as your request.

Filter specification



Media

: 304L SS, 316L SS(And other Material )

Removal Ratings

: 1, 3, 5, 10, 20, 50 100 µm





Dimensions



Nominal lengths

: 9.75, 10, 20, 30, 40 inches(And other special Size)

Outside Diameter

: 2.7 inches (6.9 cm)(And other special Size)

Inside Diameter

: 1 inch (2.54 cm)(And other special Size)





Operating Conditions



Maximum operating Temp: 232°C

Recommended Change out differential pressure: 60 psig
