In-Line Basket Filter

Product Code: 1624
Category:Basket Filters
Material:Stainless Steel wire mesh
Properties:Stainless Steel Filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of In-Line Basket Filter


In-Line Basket Filter belong to the piping thick filter series, can also be used for gas or other medium large particle filtering, installed on the pipeline to remove fluid in the larger solid impurities, installed on the pipeline to remove large solid impurity in the fluid, the machine equipment (including compressor, pump, etc.), the instrument can work normally and operation, to achieve stable process, the role of guaranteeing production safety.

Application of In-Line Basket Filter

1.Automatic Back Washing Filter Equipment

2.Line Strainer

3.Brush Type Filter Cartridge

Feature of In-Line Basket Filter

·          Leak proof tongue

·          Groove body flange joint

·          Multiple basket options

·          Housing as per pressure vessel design codes

·          Fabricated In -line filter

·          Compact system

·          'Out to In flow' or 'In to Out' flow

·          Fixed parts

·          Easily replaceable baskets

Advantages of In-Line Basket Filter

·          Easy installation of in-line filter

·          Simple design for easy basket cleaning

·          Basket can be removed without disturbing piping arrangement

·          Eco-friendly operation l Simple and safe to operate

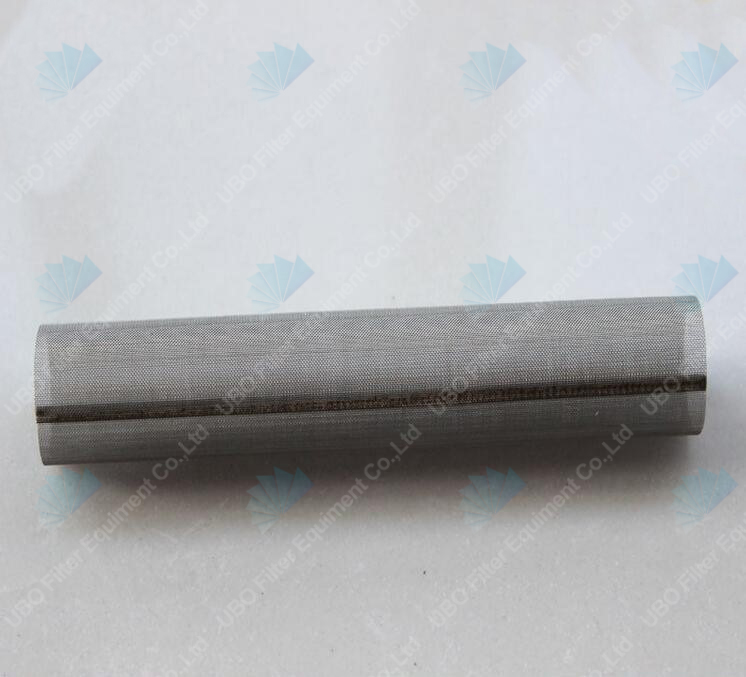

In-Line Basket Filter

Specification of the In-Line Basket Filter


1.Filter Materials:SUS304,316,316L
2.Filter Media:SS Perforated Plate
3.Filter Micron:1-200um

Length

(mm)

Diameter

(mm)

Filtration  area

(m²)

Accuracy

 (µm)

  Media

 35-1500

15-120

0.01-0.20

2-200 µm

SS wire mesh

Stainless steel sheet

Production And Sales of In-Line Basket Filter


The petrifaction industry, the pipeline filter;The project machinery, refuel the equipment field ; The field pharmaceutical and food industry
