Double Layer Hydrophilic Filter Cartridge

Product Code: 2475
Category:Cylinder Filter
Material:Hydrophilic
Properties:stianless steel filter
Application:Sterile filtration for ophthalmic solutions

Email to Us Start Order


Email:sales@ubooem.com

Description of Double Layer Hydrophilic Filter Cartridge


    Stainless steel cylinder filter element is available by variety of styles to satisfy customer requirements. We design it according to micron rating, differential pressure, product characteristics, on stream life requirements, disposability, and cleaning method. The filter media included metal fiber felt, muti-layer metal mesh, metal wire mesh, and others. It can be provided as a flat wrap for making cylindrical filters elements or pleated for making pleated filter elements.

Application for Double Layer Hydrophilic Filter Cartridge:

1. Sterile filtration for ophthalmic solutions
2.Filtration for SVP
3.Sterile filtration for buffers
4.Sterile filtration for media, serum and biologicals
5.Sterile filtration of high-value-added pharmaceuticals
6.Sterile filtration of lyophilized powder for injection
7. Available for microbiological analysis in individual sterile packaging

Feature & Benefit for Double Layer Hydrophilic Filter Cartridge:

1.Double layer hydrophilic PES Membrane
2.Low protein binding and extensive drug compatibility for critical applications
3.Long service life, high throughputs and superior flow rates
4.Cost-effective
5.Integrity testable

Specification for Double Layer Hydrophilic Filter Cartridge:

A. Material of Construction:
Filter Medium: Double Layer PES
Core, Cage & End Caps: Polypropylene, PVDF
Support & Drainage: Polypropylene,SS 304L inserted
O-ring Options: Silicone, Viton, EPDM, TEV
Gasket Options: Silicone, Viton, EPDM, PTFE
B.Removal Rating
0.20um, 0.45um, 0.65um, 0.8um, 1.2um
C.Configurations
Nominal Length: 10", 20", 30"
Diameter: ODΦ68
End Caps:
Code 3 (222 Flat), Code 8 (222 Fin)
Code 2 (226 Flat), Code 7 (226 Fin) DOE
Sealing: Thermal Bonding
Effective Filter Areas: ≥ 4.8ft2 per 10-inch cartridge

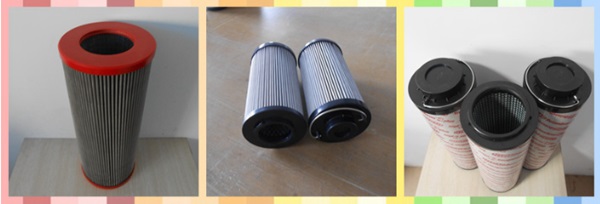

 Double Layer Hydrophilic Filter Cartridge

Specification of the Double Layer Hydrophilic Filter Cartridge


Absolute
Rating (µ)
Bubble Point Pressure (Pa)
Average Air Permeability
(L/dm2/min)
Thickness
(mm)
Weight
(g/㎡)
Porosity
(%)
Dirt Holding
Capacity
(mg/cm2)
3
12300
9
0.35
975
65
6.40
5
7600
34
0.34
600
78
5.47
7
5045
57
0.27
600
72
6.47
10
3700
100
0.32
600
77
7.56
15
2470
175
0.37
600
80
7.92
20
1850
255
0.49
750
81
12.44
25
1480
320
0.61
1050
79
19.38
30
1235
455
0.63
1050
79
23.07
40
925
580
0.66
1200
77
25.96
60
630
1000
0.70
750
87
33.97

Production And Sales of Double Layer Hydrophilic Filter Cartridge


Packaging Detail: 15PCS/CTN
Delivery Detail: 5- 7 BUSINESS DAYS

Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
