| Category: | Sintered Metal Mesh Filter |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | Sintered filter |
| Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
The stainless steel filter element adopts sintered stainless steel fiber felt, has high-pressure, high temperature and chemical corrosion resistance. It also has good air permeability, high dirt holding capacity and long-life service time can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.
sintered filter basket of the sewage, the hydraulic oil and the fuel ;separating of activator; filtration of the chemical industry, such as the medicament, foodstuff, dyestuff, printing ink, paraffinic; the disposal of the high temperature gas

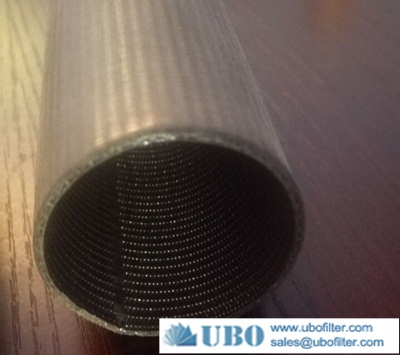

Cylindrical Filter Elements made as Stainless Steel Sintered Netting boast of fine micron filtering, good permeability , high strength, easy to clean, good corrosion resistance, durable at work and no immigration of materials, especially for bounce-back cleaned without dismantling on the product line
|
Filtering level |
the particles in the liquid blocking scales um value | permeability (less than) |
Thickness (mm) |
Compression strength |
||
|
Filtration Efficiency 98% |
filtration efficiency 99.9% |
the permeability coefficient 10-12 |
Permeability m3/H..kpa |
|||
| N7 | 4 | 6 | 0.18 | 18 | 3 | 3 |
| N6 | 7 | 9 | 0.4 | 40 | 3 | 3 |
| N5 | 10 | 14 | 0.8 | 80 | 3 | 2.5 |
| N4 | 16 | 20 | 1.61 | 160 | 3 | 2.5 |
| N3 | 25 | 33 | 3.00 | 320 | 3 | 2.5 |
| N2 | 45 | 78 | 6.02 | 600 | 3 | 2.5 |
| N1 | 80 | 100 | 9.05 | 900 | 3 | 2.5 |
|
1, The element thickness that air coefficient is corresponding to in the form is 2MM. 2, The product performance can achieve and even exceed GB. 3, High temperature alloy is allowed to use in 1000°C,and Nickel-based monel is allowed in 550°C |
||||||
