multi-layer sintered metal mesh filter

Product Code: 3071
Category:Sintered Powder Filter
Material:Stainless Steel Fiber Felt
Properties:filter disc
Application:Oil refinery, Polyester Manufactur, Textile,etc

Email to Us Start Order


Email:sales@ubooem.com

Description of multi-layer sintered metal mesh filter


    The sintered metal mesh filter adopts sintered stainless steel fiber felt, has high-pressure, high temperature and chemical corrosion resistance. It also has good air permeability, high dirt holding capacity and long-life service time can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.

multi-layer sintered metal mesh filter

Application for multi-layer sintered metal mesh filter:

oil well , water well , geothermal well , sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment

Features and Benefits for multi-layer sintered metal mesh filter:

All stainless steel construction
Multilayer Stainless steel sintered wire mesh
Uniform aperture
Corrosion resistance, high pressure, high temperature
High-pressure backwash, good recoil effect
All-welded construction, no media loss

Characteristic for multi-layer sintered metal mesh filter:

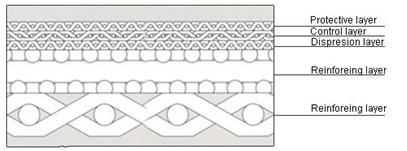

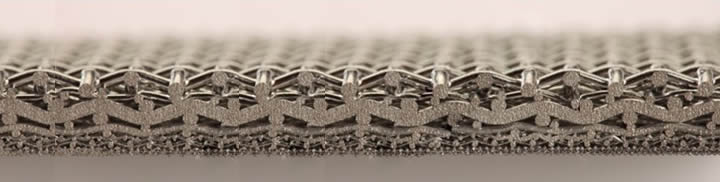

Standard sintered mesh structures consist of protection layer, precision control layer, disperse layer and multi-layer reinforced layer.
After high strength metal mesh sintering, have highest mechanical strength and anti-pressure strength.
As adopt surface filter structure of best backwash cleanness effect, easy to clean.

multi-layer sintered metal mesh filter

multi-layer sintered metal mesh filter

Specification of the multi-layer sintered metal mesh filter


multi-layer sintered metal mesh filter

No.

Liquid Accuracy(μm)

Gas Accuracy  (μm)

Porosity (%)

Average Air-permeability (L/dm2.min)

Liquid Flow Rate (m3/h)

1

2

0.8

35

2.3

0.25

2

5

1

2.4

0.43

3

10

3

3.0

0.5

4

15

10

4.0

0.54

5

20

15

4.5

0.58

6

25

20

5.0

0.61

7

40

25

7.1

0.67

8

50

35

9.2

0.72

9

70

50

13.6

0.91

Production And Sales of multi-layer sintered metal mesh filter


multi-layer sintered metal mesh filter
