Stainless Steel Multi-layer Sintered Metal Mesh Filter

Product Code: 3123
Category:Sintered Powder Filter
Material:stainless steel
Properties:Sintered mesh filter cartridges
Application:the water-treating equipment, the environmental protection, the sea water transforms into the industrial water

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Stainless Steel Multi-layer Sintered Metal Mesh Filter


The sintered metal mesh filter adopts sintered stainless steel fiber felt, has high-pressure, high temperature and chemical corrosion resistance, it also has good air permeability, high dirty holding capacity and long-life service time, can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.

stainless steel multi-layer sintered metal mesh filter


Features for Stainless Steel Multi-layer Sintered Metal Mesh Filter:

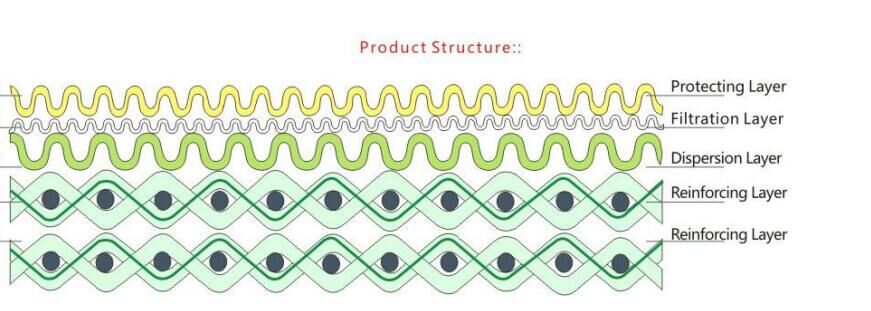

Standard sintered mesh structures consist of protection layer, precision control layer, disperse layer and multi-layer reinforced layer.
After high strength metal mesh sintering, have highest mechanical strength and anti-pressure strength.
As adopt surface filter structure of best backwash cleanness effect, easy to clean.


Application for Stainless Steel Multi-layer Sintered Metal Mesh Filter:

All kinds of high temperature, catalyst , corrosive liquid filtration for petrochemical industry.All kinds of melt polymer filtration in chemical fiber film fields;high pressure backwashing oil purifier;All kinds of catalyst filtering separation for Pharmaceutical Industry;Gas distribution, liquid Bed orifice plate material


Introductions for Stainless Steel Multi-layer Sintered Metal Mesh Filter:

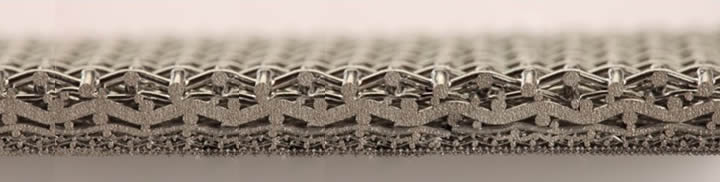

1) Stainless Steel Sint red Metal Mesh Filter is made of five or multiple layers sintered metal wire mesh.

2) Stainless Steel Sintered Metal Mesh Filter keeps high corrosion resistance, good air permeability,high strength,high filtration precision.

3) Stainless Steel Sintered Metal Mesh Filter is easy to wash.

stainless steel multi-layer sintered metal mesh filter

stainless steel multi-layer sintered metal mesh filter

Specification of the Stainless Steel Multi-layer Sintered Metal Mesh Filter


stainless steel multi-layer sintered metal mesh filter

Length: 1000mm

OD:60mm

Filter Precision: 2~60um

Work Temperature: -20~600°c

Layer: 2~7

Max. Pressure Difference:3.2MPa

Structure: Cartridge Filter

Material: Stainless Steel Fiber Felt

Usage: High Polymer Filtration

Filter Type: Anti-static

Filter Rate: High Filter precision--customized

Dimension: Customized

Payment Term: T/T,L/C

Production And Sales of Stainless Steel Multi-layer Sintered Metal Mesh Filter


stainless steel multi-layer sintered metal mesh filter
