Titanium powder sintered filter disc

Product Code: 1728
Category:Sintered Powder Filter
Material:Titanium powder sintered
Properties:Sintered filter
Application:Filtration

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Titanium powder sintered filter disc


   Titanium powder sintered filter disc is made of sintered wire mesh plate (filter media ),with good capacities of back wash ,recycle,long time working .It is widely used in automation and continulus operation system.
    It is a porous metal panel which consists of multiple meshes and is sintered (diffusion-bonded) into one panel. It usually consists of protection mesh, filter mesh and support mesh and its combination is depending on needs or requirements.

Applications for Titanium powder sintered filter disc:

Mainly used in petroleum, chemical, automotive, aircraft, marine industrial filtration gases, liquids, fuel oil, also used extensively for pneumatic, hydraulic circuit filter elements.

Features for Titanium powder sintered filter disc:

1 high precision filter: pore stability, will not change the pore pressure changes with the phenomenon. Can effectively remove suspended solids and particulates, excellent filtration, purification effect.
2 permeability, pressure loss is small. Filter composed entirely of spherical powder, high porosity, pore size uniformity and smooth, the initial resistance is small, easy cleaning, regeneration ability, long service life.
3 high mechanical strength, good rigidity, good plasticity, anti-oxidation, corrosion protection without additional framework support, installation and use, easy maintenance, assembly, and can be welding, bonding and mechanical processing.
4 uniform porosity, especially for fluid distribution, homogenization treatment uniformity requirements of the occasion.
5 forming a copper powder products, without cutting, effective utilization of raw materials is high, maximum material savings.
6 Filtration: 5 ~ 50μm.

Work environment for Titanium powder sintered filter disc:

Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas environment

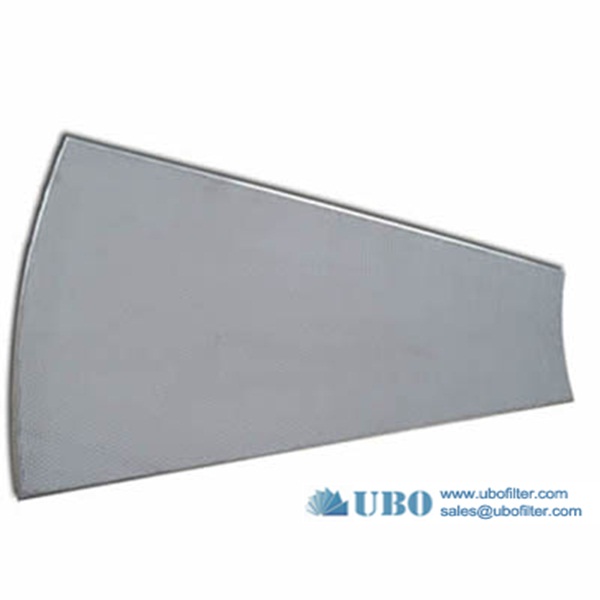

Titanium powder sintered filter disc

Specification of the Titanium powder sintered filter disc


stainless steel sintered metal filter cartridge
Mesh/Inch Wire Diameter
(mm)
Aperture
(mm)
Filtration Area % Mesh/Inch Wire Diameter
(mm)
Aperture
(mm)
Filtration Area%
5 1.00 4.08 64 100 0.11 0.144 32
6 0.90 3.33 62 120 0.09 0.122 33
8 0.70 2.47 61 150 0.065 0.104 38
1 0.50 0.04 64 200 0.05 0.077 37
12 0.50 1.62 59 200 0.04 0.084 47
14 0.50 0.50 52 250 0.04 0.062 37
16 0.35 1.24 61 250 0.035 0.067 43
18 0.28 1.31 64 250 0.03 0.072 50
20 0.35 0.92 52 300 0.04 0.045 28
24 0.35 0.71 45 300 0.03 0.055 42
28 0.35 0.56 38 325 0.035 0.043 30

Production And Sales of Titanium powder sintered filter disc

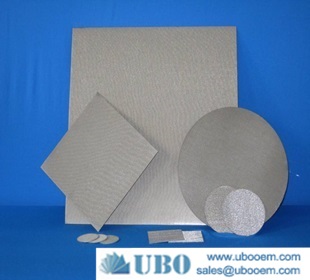

Titanium powder sintered filter disc
