Titanium Powder Sintered Filter Sheet

Product Code: 1731
Category:Sintered Powder Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sintered filter
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Titanium Powder Sintered Filter Sheet


The stainless steel filter element adopts sintered stainless steel fiber felt, has high-pressure, high temperature and chemical corrosion resistance. It also has good air permeability, high dirt holding capacity and long-life service time can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.



Application for Stainless Steel Mesh Sintered Filter:



It is mainly used for macromolecule polymer filtration, high temperature gas filtration, hydraulic system filtration, Pre-filtration of high precision membrane, catalyst carrier and regeneration, food, drink and pharmaceutical.



Advantage for Stainless Steel Mesh Sintered Filter:



1) Strength: As a fourth and fifth layers do support, with high mechanical strength and compressive strength.

2) Easy to clean: As a result of surface of the filter material, having means for cleaning characteristics, especially suitable for backwashing.

3) Easy processing: suitable for cutting, bending, stamping, drawing, welding and other processes.

4) High temperature: 480 °C can withstand high temperatures.

5) Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.

6) Filtration: Filtration range of 1μ-100μ, has a reliable filter performance.

7) Stability: Because there are two layers to do to protect the screen, plus solid melting diffusion sintering process which make filters is not easily to deform.



Features for Stainless Steel Mesh Sintered Filter:



*Stable pore shapes
*High permeability
*Low pressure drop
*High dirt-holding capacity (longer lifetime)
*High temperature resistance
*High differential pressure with stand capacity
*Strong corrosion resistant
*Back flushing
*Excellent mechanical strength
*No media migration
*Size customization
*Various specifications are available as request.

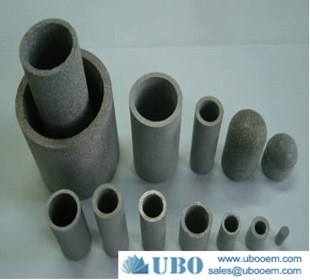

Stainless steel mesh sintered filters

Specification of the Titanium Powder Sintered Filter Sheet


type Nominal accuracy(um) Gas Accuracy(L/min·dm2·1000pa) Bubble Pressure (pa)
MSW1 1
180
5300~6000
MSW2 2 240 4300~5000
MSW5 5 260 3000~3700
MSW10 10 310 2700~3300
MSW15 15 350 2000~2600
MSW20 20 450 1800~2300
MSW25 25 620 1400~1900
MSW30 30 690 1200~1700
MSW40 40 420 1000~1500
MSW50 50 850 900~1200
MSW70 70 900 700~1100
MSW100 100 1080 650~1000
MSW150 150 2600 500~800
MSW200 200 2800 450~600

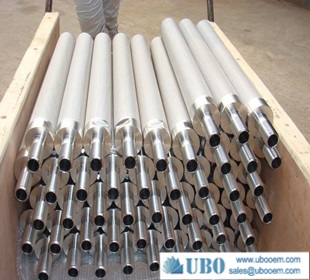

Production And Sales of Titanium Powder Sintered Filter Sheet


Package: in wood case

Delivery Time: 5-25 days
