Metal Sintered Powder filter sheet

Product Code: 1726
Category:Sintered Powder Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sintered filter
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Metal Sintered Powder filter sheet

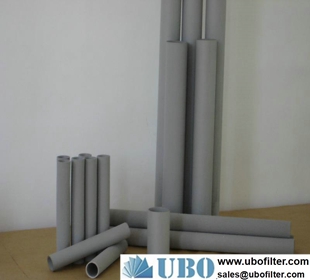

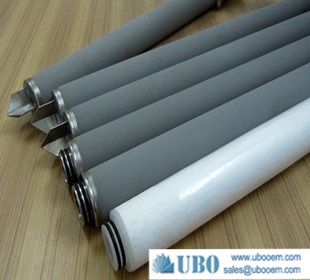

     Stainless steel cylinder filter element is available by variety of styles to satisfy customer requirements. We design it according to micron rating, differential pressure, product characteristics, on stream life requirements, disposability, and cleaning method. The filter media included metal fiber felt, muti-layer metal mesh, metal wire mesh, and others. It can be provided as a flat wrap for making cylindrical filters elements or pleated for making pleated filter elements.

Applications for Metal Sintered Powder Filter cap:

Used in water treatment, pharmaceutical, chemical, food, beverage, oil filtration and etc , it could be filter mesh, filter element, filter cartridge, filter disc and etc.

Feature and Advantage for Metal Sintered Powder Filter cap:

Stable pore shapes
High permeability
Low pressure drop
High dirt-holding capacity (longer lifetime)
High temperature resistance
High differential pressure with stand capacity
Strong corrosion resistant
Back flushing
Excellent mechanical strength
No media migration
Size customization

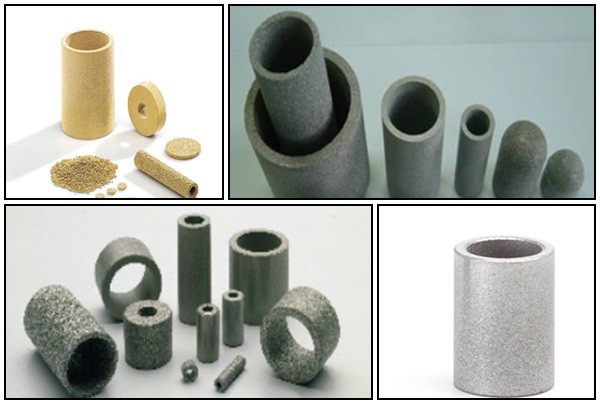

Metal Sintered Powder Filter cap

Specification of the Metal Sintered Powder filter sheet


Filtering
Level
Filtration
Precision
um
Maximum
Hole
Diameter um
Permeability
Coefficient
10~12㎡
Permeability
M3/h.㎡.kpa

Thickness
mm
Compression
Strength
Mpa/cm2
Bubbling
Pressure
Kpa
S9 0.2 2.5   1 0.6~10 3.0
S8 0.5 4   3 0.6~10 3.0
S7 1.5 6   5 0.6~10 3.0
S6 2.5 10 0.09 10 0.6~10 3.0 9.16
S5 5 15 0.23 40 0.6~10 3.0 6.1
8 20 0.91 80 0.6~10 3.0 4.6
S4 10 30 1.81 160 0.6~10 3.0 2.6
S3 28 60 3.82 350 0.6~10 3.0 1.8
35 80 7.29 500 0.6~10 3.0 1.4
S2 40 100 9.43 700 0.6~10 3.0 1.1
S1 65 160 15.1 1000 0.6~10 3.0 0.66

Production And Sales of Metal Sintered Powder filter sheet


Metal Sintered Powder Filter cap
