5-Layer Sintered Wire Mesh Filter

Product Code: 2171
Category:Sintered Metal Mesh Filter
Material:Sintered Wire Mesh
Properties:sintered metal mesh filter
Application:Filtration in Oil,Chemical,Pharmacy Industry

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of 5-Layer Sintered Wire Mesh Filter




Our 5-layer laminate is a widely used type of sintered wire mesh. A single layer of fine woven wire mesh is placed between two layers of coarser square woven meshes, which is then added to two layers of a strong Dutch woven wire mesh and sintered together to form a strong plate. The single layer of fine woven wire mesh acts as the filtration layer, and can be customized to meet a particular filtration rating, ranging from 1 micron to 200 microns.

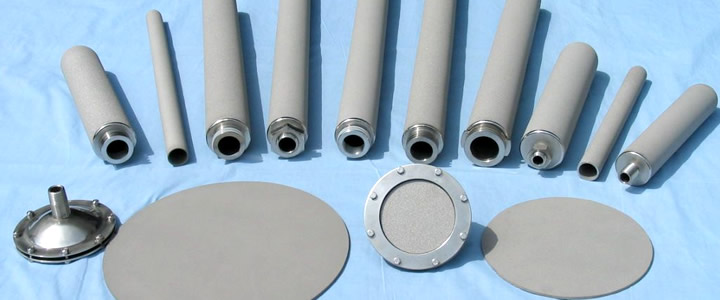

5-Layer Sintered Wire Mesh filter

Standard sintered wire mesh panel, "Poremet''

“Poremet” is our standard products of sintered wire mesh panel which is well designed for multi purposes and usually consists of five (5) layers of meshes;

First layer: 100 mesh as protection,

Second layer: filter mesh which varies on requirement,

Third layer: 100 mesh again as protection,

Fourth layer: 12/64 mesh as support,

Fifth layer: 12/64 mesh again, but placed cross to the fourth layer.

The standard sizes of “Poremet” panels are:

500 mm x 1,000 mm,
1,000 mm x 1,000 mm,
1,200 mm x 1,200 mm

5-Layer Sintered Wire Mesh filter

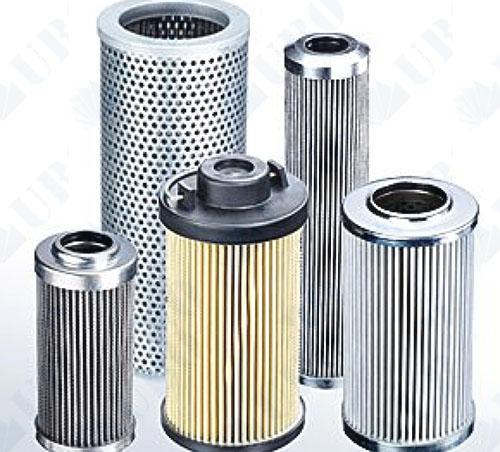

Ubo Filter Co.,Ltd could supply stainless steel filter elements, filter element, filter disc, sintered filter, filter strainer, polymeric filter, basket filter, wire mesh filter, pleated filter, etc.

Specification of the 5-Layer Sintered Wire Mesh Filter


Model Nominal Filter Rating
( u)
Structure Thickness
(mm)
Air
Permeability
(L/min/cm2)
Bubble Pressure (mm H2O) Weight
(㎏/㎡)
Porosity
(%)
A5-1 1 100+400×2800+100+12×64+64×12 1.7 1.81 360-600 5-layer sintered wire mesh(8.4
6-layer sintered wire mesh
(14.4)
37%
A5-2 2 100+325×2300+100+12×64+64×12 1.7 2.35 300-590
A5-5 5 100+200×1400+100+12×64+64×12 1.7 2.42 260-550
A5-10 10 100+165×1400+100+12×64+64×12 1.7 3.00 220-500
A5-15 15 100+165×1200+100+12×64+64×12 1.7 3.41 200-480
A5-20 20 100+165×800+100+12×64+64×12 1.7 4.50 170-450
A5-25 25 100+165×600+100+12×64+64×12 1.7 6.12 150-410
A5-30 30 100+450+100+12×64+64×12 1.7 6.7 120-390
A5-40 40 100+325+100+12×64+64×12 1.7 6.86 100-350
A5-50 50 100+250+100+12×64+64×12 1.7 8.41 90-300
A5-75 75 100+200+100+12×64+64×12 1.7 8.7 80-250
A5-100 100 100+150+100+12×64+64×12  1.7 9.1 70-190

Production And Sales of 5-Layer Sintered Wire Mesh Filter

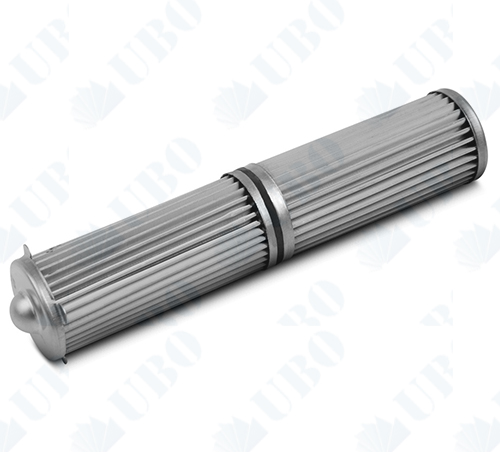

5-Layer Sintered Wire Mesh filter
