wedge wire water strainer

Product Code: 2518
Category:Wedge Wire Screen Cylinders
Material:Low carton, low carton galvanized steel (LCG), stainless steel (304,316etc.)
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of wedge wire water strainer

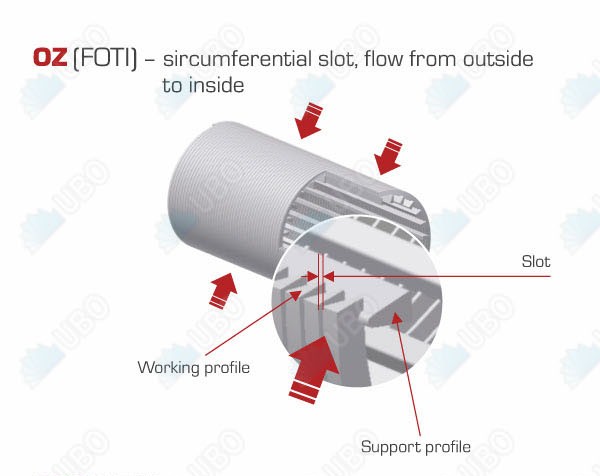

The wedge wire water strainers are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). The wedge wire water strainer have a structure and high open area, as well as accurate slot dimension. At the same time, wedge wire water strainer have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

wedge wire water strainer

Application of wedge wire water strainer

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters

Advantages of wedge wire water strainer

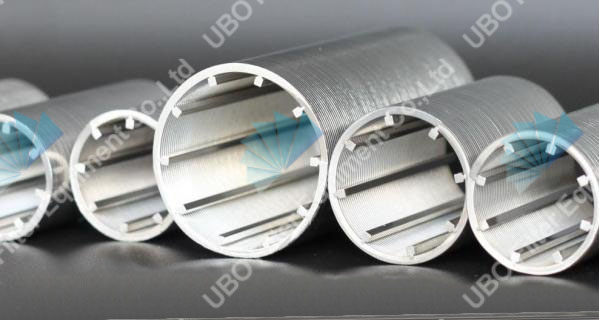

The Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

wedge wire water strainer

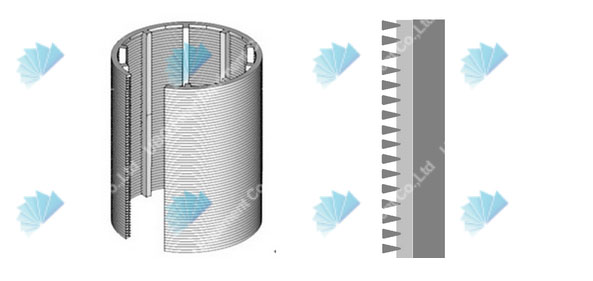

Specification of the wedge wire water strainer




wedge wire water strainer

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of wedge wire water strainer


Packaging Detail: wooden case/as customized
Delivery Detail: 10 days after receive the payment

wedge wire water strainer
