wedge wire screen resin traps

Product Code: 2486
Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430
Properties:wedge wire screen
Application:water treatment,oilfield,mining,food industry,chemical industry,papermaking industry,decoration.

Email to Us Start Order

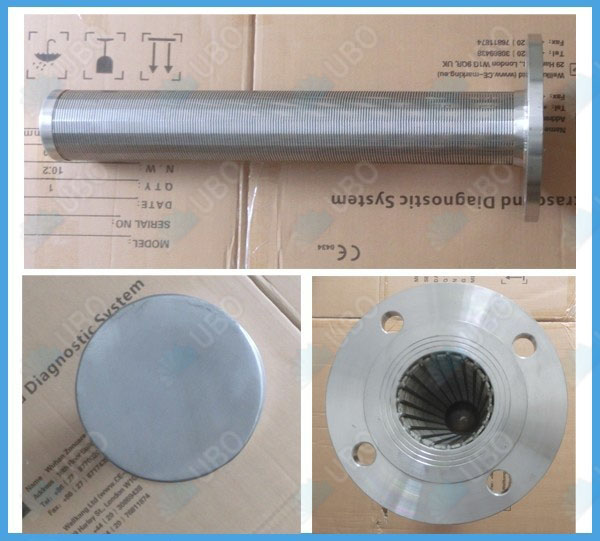

Description of wedge wire screen resin traps

The wedge wire screen resin traps element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

Used of wedge wire screen resin traps

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Advantages of wedge wire screen resin traps

Very precise slots for perfect particle retention combined with minimum
Obstruction of the process flow,flexibility in design,strong construction,Large open area,plug-resistant slot design.

wedge wire screen resin traps

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the wedge wire screen resin traps

wedge wire screen resin traps

Pressure loss:0.01-0.03Mpa
Working power supply:380v,AC 50HZ
Filtration precision:less than 6mm
Length:R1 R2 R3,up to 6m
Wire type:wedge wire
Filter rating:60% up
Slot size:0.02-1min
Surface treatment:polishing,chroming

Production And Sales of wedge wire screen resin traps

Packaging Detail: carbon box or as per your request.
Delivery Detail: 5-15 days after receive the peyment

wedge wire screen resin traps
