wedge wire filter for dewatering equipment

Product Code: 2520
Category:Sieve Plate Screen
Material:stainless steel 304,316,316l,320
Properties:wedge wire screen
Application:oil well, water well, geothermal well, sewage and industrial wastewater disposal plants

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of wedge wire filter for dewatering equipment


wedge wire screen panel filter for dewatering equipment have a high open area by comparison with woven wire screen media. Supplied in mainly flat forms or curved panel forms. High opening screen gives lower entrance velocities and higher flow rates through the screen. In the case of pump in-taking screens, pumping costs are lower.

The wedge wire screen panel filter for dewatering equipment have continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening. And the products are made by continuously winding a wrap wire onto a frame of support rods. This is done on precision built, electronically controlled machinery which ensures consistently high strength, precise slot openings and product durability.

Features of wedge wire screen panel filter for dewatering equipment

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Usages of wedge wire screen panel filter for dewatering equipment

Use for oil well , water well ,  geothermal well ,  sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment

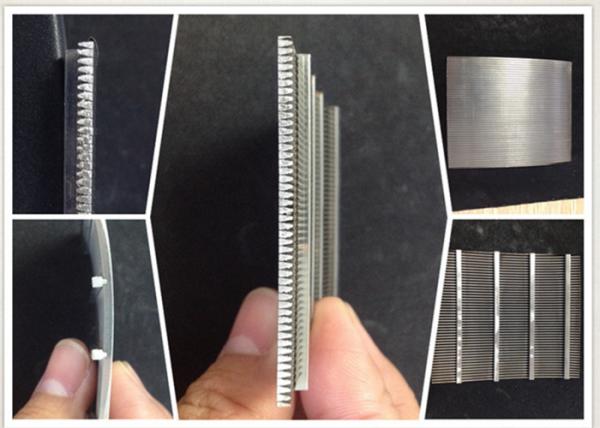

          wedge wire filter for dewatering equipment

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the wedge wire filter for dewatering equipment


Material:stainless steel 304,316,316l,320,Hastelloy C
Wire diameter: 1.5X2mm, 2x3mm, 3x6mm
Length: MAX 6 meters.
Diameter:MAX 280mm
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Slot Width Tolerance
Slot width shouldn't exceed 0.02mm and shouldn't less than 0.01mm compare to standard size when slot width is below 0.2mm
Slot width should be controlled within ± 0.02mm compare to standard size if slat width is bigger than 0.25mm
Plating
Hard plating the wedge bar surface, plating thickness is 0.20-0.30mm. surface hardness >HRC : 60-66 (HV700-900)Product structure : wedge wire screen and stainless steel pipe
Surface treatment: polishing

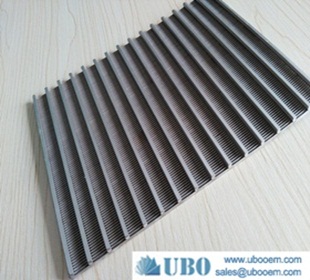

wedge wire filter for dewatering equipment

Production And Sales of wedge wire filter for dewatering equipment


Packaging Detail: carton
Delivery Detail: a month
