wedge wire Wedge Wire screen pipe

Product Code: 2935
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:Wedge Wire Screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of wedge wire Wedge Wire screen pipe


wedge wire Wedge Wire screen pipe also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance. The stainless steel wedge wire Wedge Wire screen pipe is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

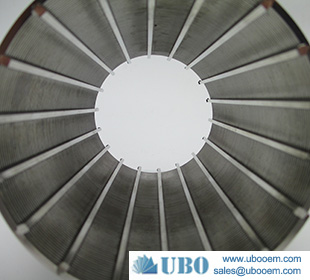

wedge wire Wedge Wire screen pipe



Applications for wedge wire Wedge Wire screen pipe:



Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.



Advantages for wedge wire Wedge Wire screen pipe:


A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

A uniform and efficient well development due to the continuous slot opening.

Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

Continuous slot welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Specification of the wedge wire Wedge Wire screen pipe



Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings

Production And Sales of wedge wire Wedge Wire screen pipe

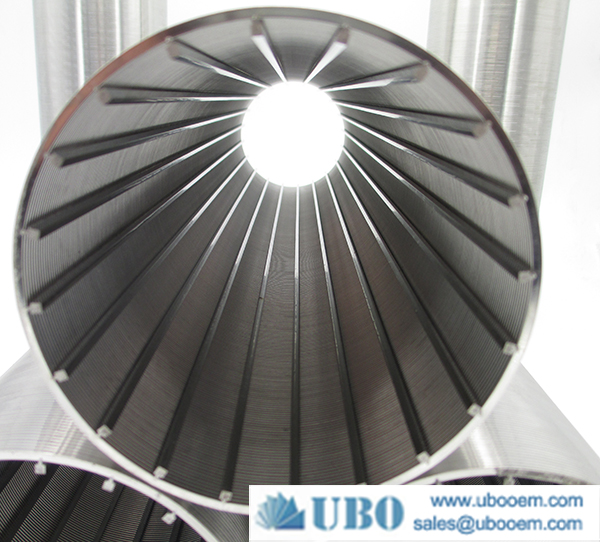

wedge wire Wedge Wire screen pipe
