wedge ve wire fasel bottom lauter tun screen plate for beer brewry

Product Code: 3505
Category:Lauter Tun Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:false bottom
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of wedge ve wire fasel bottom lauter tun screen plate for beer brewry


wedge ve wire fasel bottom lauter tun screen plate for beer brewry consist of shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

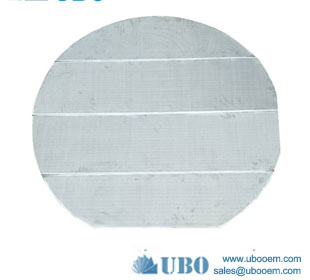

wedge ve wire fasel bottom lauter tun screen plate for beer brewrywedge ve wire fasel bottom lauter tun screen plate for beer brewrywedge ve wire fasel bottom lauter tun screen plate for beer brewry

Advantage of wedge ve wire fasel bottom lauter tun screen plate for beer brewry

1. Continuous slot screens, stronger and more durable
2. More open area, very precise openings
3. Virtually non-clogging and reduce media abrasion
4. Easier installation and long-term operating and cost benefits

Uses of wedge ve wire fasel bottom lauter tun screen plate for beer brewry

• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations.

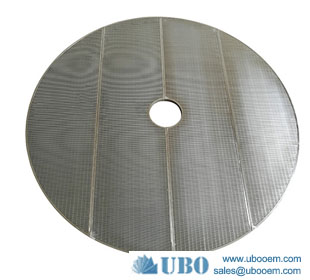

wedge ve wire fasel bottom lauter tun screen plate for beer brewry

Specification of the wedge ve wire fasel bottom lauter tun screen plate for beer brewry


wedge ve wire fasel bottom lauter tun screen plate for beer brewry

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29, 30, 35, 37, 40, 45, 47, 59, 63, 74, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

Production And Sales of wedge ve wire fasel bottom lauter tun screen plate for beer brewry


wedge ve wire fasel bottom lauter tun screen plate for beer brewry
