ss water strainer nozzle for water filtration

Product Code: 2565
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of ss water strainer nozzle for water filtration


The ss water strainer nozzle have a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. Thescreen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.

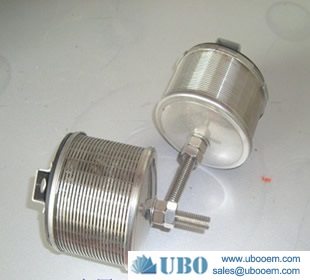

ss water strainer nozzle for water filtration

Uses of ss water strainer nozzle for water filtration

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Construction of ss water strainer nozzle for water filtration

The wedge wire element in a nozzleis a slot tube. Nozzles are closed on one side and have a threaded fitting on the other. The flow is always out to in. Standard nozzles are 50 mm in diameter, all having a flow-out-to-in (FOTI) filtration.

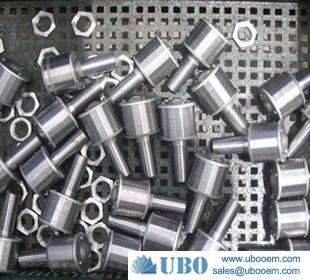

ss water strainer nozzle for water filtration

Specification of the ss water strainer nozzle for water filtration




ss water strainer nozzle for water filtration

No. Slot Dimension Flow area/mm2 (Slot: 0.2mm)
D H L M L1
1 0.2-0.5 45 30 180 25 According to custom's request 330
2 45 40 190 25 450
3 53 40 190 30 500
4 53 50 200 30 630
5 53 40 235 32 500
6 57 40 190 32 605
7 57 50 200 32 750

Production And Sales of ss water strainer nozzle for water filtration


ss water strainer nozzle for water filtration
