screen plate
[SY_CPTU2]

screen plate

Product Code: 3147
Category:Sieve Plate Screen
Material:Stainless steel wire,iron plate,copper plate,aluminum plate.
Properties:filters
Application:water,oil,liquid filtration,industry filtration,food filtration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of screen plate

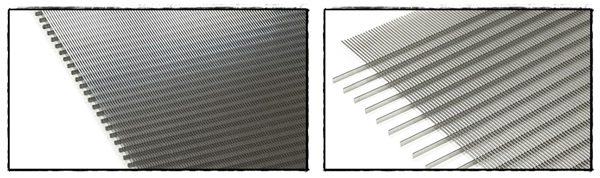

screen plates are made of SS V shaped and SS V shaped or SS V shaped and SS rod or SS V shaped and SS Convex shaped rod with the unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This V shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.


Features for profile screen drainage panel plate


It is punched to meshes, winding-resisting, aging-resisting, corrosion-resisting, the top of meshes in smooth, it is strong and durable.


Applications for profile screen drainage panel plate

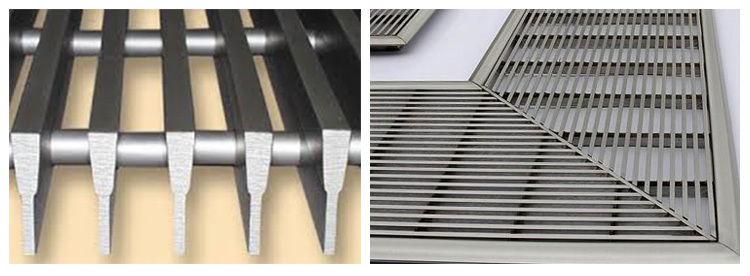

The Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.


Advantages for profile screen drainage panel plate


-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

-- A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Offering great strength. precision, long service life.

           screen plate


wedge wire support screen grid v wire flat screen

UBO is specialized in producing and distributing filter, filter element,polymeric filter,filter strainer,wedge wire screen etc.

Specification of the screen plate


Product specification:

Material Panle thickness
(mm)
Aperture
(mm)
Pitch
(mm)
Plate width
(m)
Plate length
(m)
Opening area
(%)
Weight
(kg/m2)
Coil panel 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
Flat panel 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1.5 2 2 1 2 19.6 9.4
3 5 16 1 2 19.6 18.8
Stainless steel panel 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum panel 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.5 2 2 1 2 19.6 3.24
2 4 16 1 2 19.6 4.23

Production And Sales of screen plate


Package: in wood case

Delivery: 10-20 days
