media inlet nozzles

Product Code: 2191
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:water strainer&nozzle
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

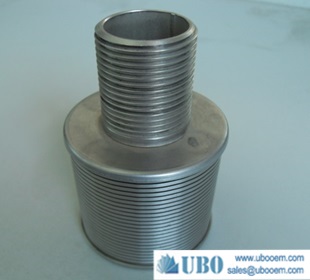

Description of media inlet nozzles


     The wedge wire screen nozzles. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.

Application for media inlet nozzles:

The stainless steel wedge wire 316L water screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for media inlet nozzles:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

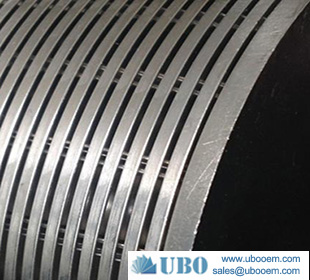

5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

media inlet nozzles

Specification of the media inlet nozzles


media inlet nozzles



Catalogue Item Slots mm Thread ΦAmm Thread length L1mm Shaft L2 mm L3 mm
Type B 0.05, 0.1, 0.2, 0.3 , 0.5, 1.0 1¼"WW 32 25,30,45 80,110,
40,200,
250,300,
350,…
45,50,55,
60,70,80
M30 30*3.5 30
3/4" 26.5 20,45,+5+5...
1"WW 25.4 20,45,+5+5...
M24 24 20,45,+5+5..

Production And Sales of media inlet nozzles


media inlet nozzles
