| Category: | Header-Lateral |
| Material: | stainless steel |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |

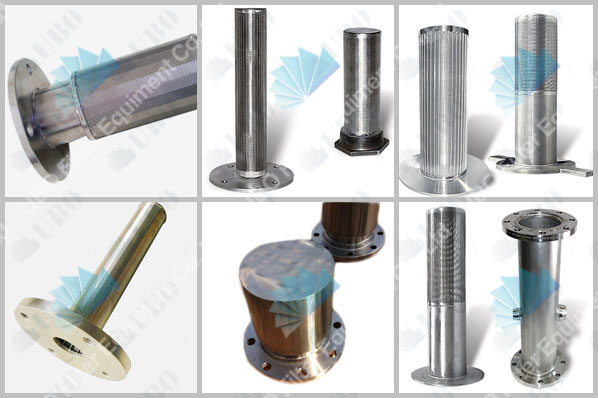

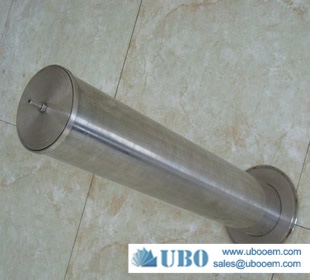

Water inlet distributor is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.
Usedin in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of well.
Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.
|
Material: |
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.) |
|
Wedge Wire (mm): |
Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
|
Support Rod (mm): |
Width : 2.30 3.00 3.30 3.70 |
|
Height : 2.70 3.60 4.70 5.60 6.30 |
|
|
Round : 2.50mm -- 6.0mm |
|
|

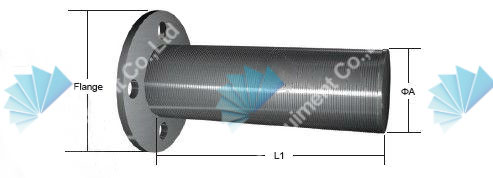

Diameter ranging |
from 1 inch -----45 inch. |
|
Length: |
lengths up to 6 meters. |
|
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
|
Connection:thread or flange, according to your special requirement |
|
