Stainless Steel Wire Wedge Wire type filter screen nozzle used in wastewater syetem

Product Code: 3534
Category:Water Strainer & Nozzle
Material:stainless stee stainless steel 304,304L,304HC,316,316L,321,430 or as per your requestl 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

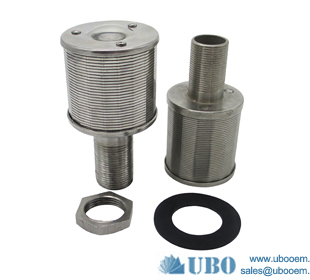

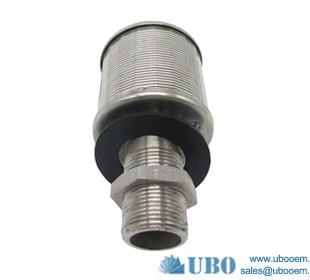

Description of Stainless Steel Wire Wedge Wire type filter screen nozzle used in wastewater syetem


Wedge Wire type filter screen nozzle used in wastewater syetem are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.

Welded wire Wedge Wire type filter screen nozzle used in water filteration syetemWelded wire Wedge Wire type filter screen nozzle used in water filteration syetem

Application of Wedge Wire type filter screen nozzle used in wastewater syetem

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Welded wire Wedge Wire type filter screen nozzle used in water filteration syetemWelded wire Wedge Wire type filter screen nozzle used in water filteration syetem

Advantages of Wedge Wire type filter screen nozzle used in wastewater syetem

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Welded wire Wedge Wire type filter screen nozzle used in water filteration syetem

Specification of the Stainless Steel Wire Wedge Wire type filter screen nozzle used in wastewater syetem


Welded wire Wedge Wire type filter screen nozzle used in water filteration syetem
Type Slot
(mm)
Dimension Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings
UBO-0.5 0.25 45 45 90/request M,NPT, G, PT(BSPT),Z,BSP, request SS Gasket,
Rubber gasket,
Nut, request
0.5
UBO-1.0 0.25 53 45 90/request 1.0
UBO-1.5 0.25 57 45 90/request 1.5
UBO-2.0 0.25 57 55 100/request 2.0
UBO-2.5 0.25 70 55 100/request 2.5
UBO-3.0 0.25 70 70 120/request 3.0
  * All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

Production And Sales of Stainless Steel Wire Wedge Wire type filter screen nozzle used in wastewater syetem


the packing and transportation of filter nozzles
