Media Inlet Nozzles

Product Code: 2466
Category:Water Strainer & Nozzle
Material:stainless steel
Properties:wedge wire screen
Application:filtration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Media Inlet Nozzles

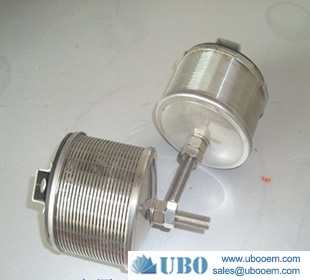

UBO media inlet nozzles nozzles have distinct advantages in that they are economical, non- clogging and ideally suited as collectors and distributors. The most common standard nozzle is style "N" as shown. They are efficient and easily installed in false bottom installations with lateral systems. Standard "T" bolt, coupling and custom design connections are equally available. We will provide complete engineering assistance in the design and selection of nozzle internal systems.

Application of Media Inlet Nozzles

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Advantages of Media Inlet Nozzles

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

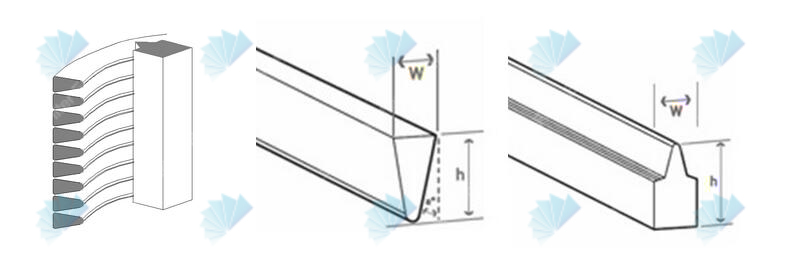

5. Wedge wire screen is highly resistant to plugging.

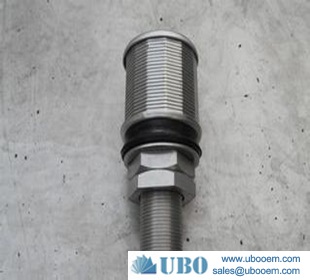

6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Media Inlet Nozzles

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the Media Inlet Nozzles


Media Inlet Nozzles

No. Type Ton Slot
Opening
Size 0.2-0.25mm slot opening Area of through-flow mm2(reference)
D L1 L M
1 SH45-1-C 0.5 0.2-0.5 45 45 95 24 500
2 SH53-2-B 1 0.2-0.5 53 45 100 24 570
3 SH53-2-C 1.5 0.2-0.5 53 50 110 32 700
4 SH57-3-B 2 0.2-0.5 57 45 110 32 600
5 SH70-4-B 3 0.2-0.5 70 55 120 32 1000
