low carbon galvanized water well screen

Product Code: 2181
Category:Wedge Wire Screen Cylinders
Material:wedge wire 304 316L
Properties:water strainer&nozzle
Application:ore choosing,petroleum,chemical,water,plastics,food

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of low carbon galvanized water well screen

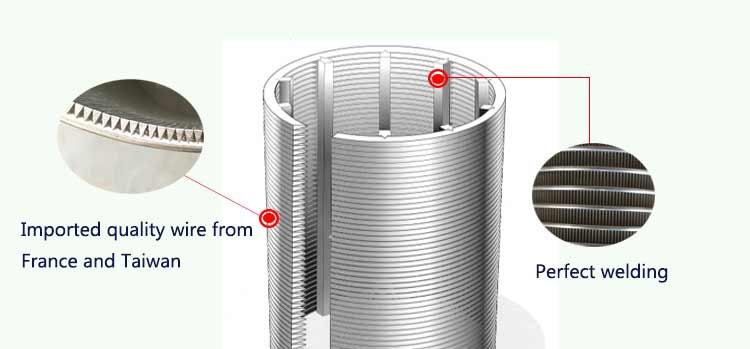

low carbon galvanized water well screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

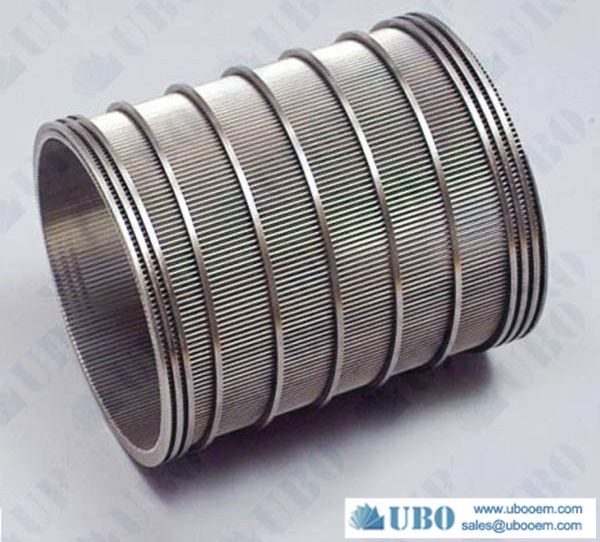

low carbon galvanized water well screen

Characteristics for low carbon galvanized water well screen:

1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits

Application for low carbon galvanized water well screen:

The wedge wire cylinders are widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

Technical parameter for low carbon galvanized water well screen

Wedge wire cylinder diameter is from 25mm to 1500mm.
Wedge wire cylinder length is from 0.3m to 12m.
For wedge wire cylinder, profile wire is generally triangle wire;
support rod includes triangle wire,round rod,flat wire etc

Specification of the low carbon galvanized water well screen

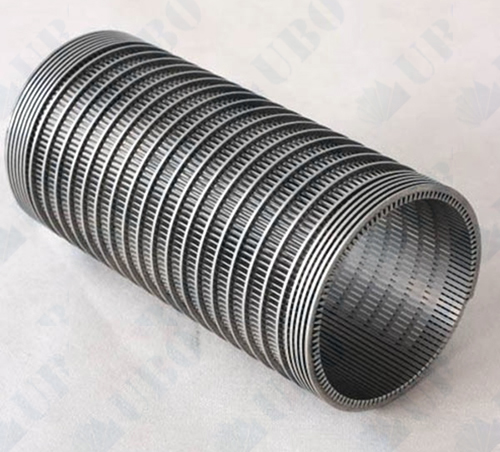

low carbon galvanized water well screen

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Production And Sales of low carbon galvanized water well screen

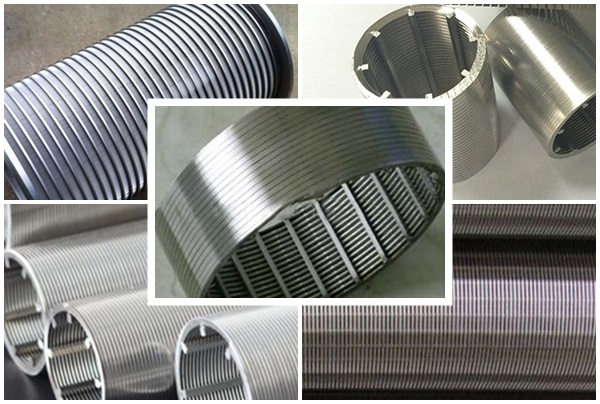

low carbon galvanized water well screenlow carbon galvanized water well screen
