Wedge Wire wedge wire screen tube for water well

Product Code: 3554
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Author: Eva
Email:sales@ubooem.com

Description of Wedge Wire wedge wire screen tube for water well


Wedge Wire wedge wire screen tube for water wells are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

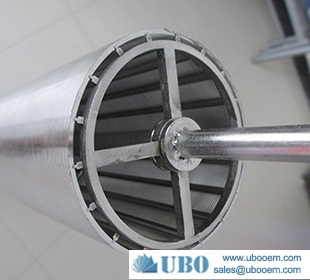

structure of Wedge Wire wedge wire tube



Application of Wedge Wire wedge wire screen tube for water well



The v wire wedge wire screen pipe are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.



Features of Wedge Wire wedge wire screen tube for water well



-- Non-clogging surface .

-- Large open area .

-- Low pressure drop .

-- Hydraulic efficiency .

-- High flow rates .

-- Mechanical strength .

-- Abrasion-resistant .

-- Easy cleaning

jdetailed drawing of Wedge Wire wedge wire tube

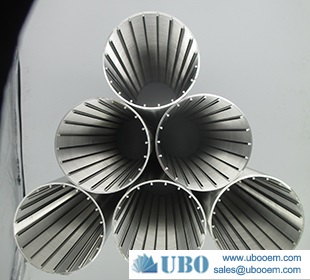

structure of the wedge wire tube

Specification of the Wedge Wire wedge wire screen tube for water well



wedge wire Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
support rod Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters
Diameter from 25mm to 1200mm.

Production And Sales of Wedge Wire wedge wire screen tube for water well


Package: in wood case.
