| Category: | Sieve Plate Screen |
| Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen panel |
| Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical |

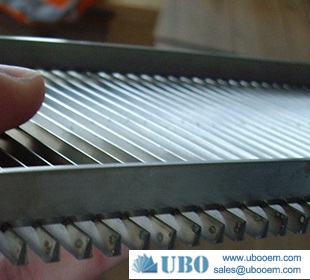

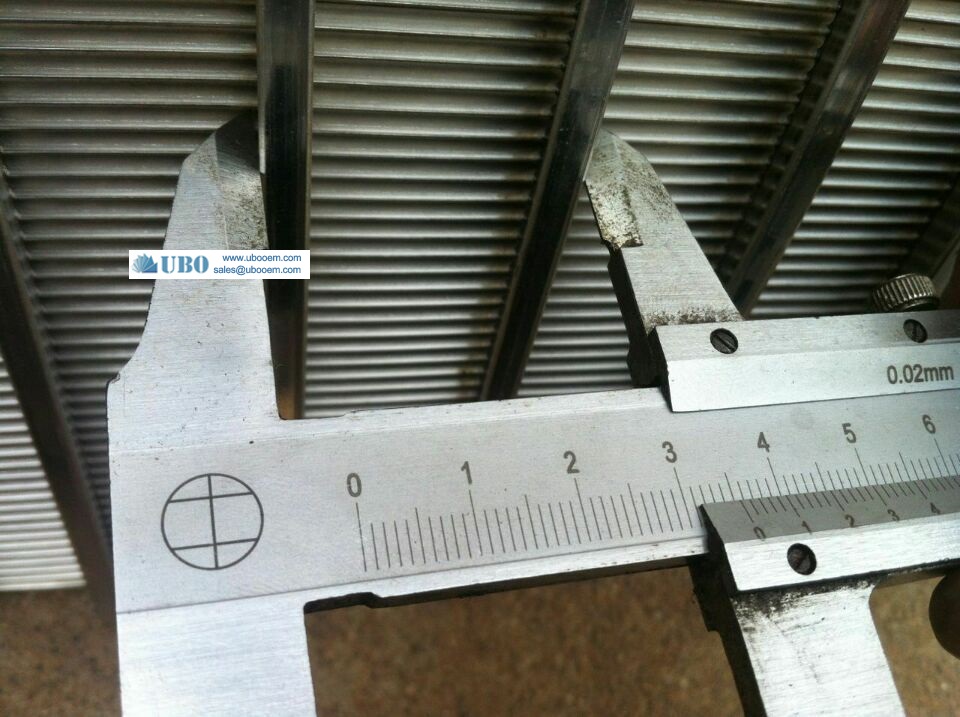

The Wedge Wire flat wedge wire screen panel construction produces high strength and extended service life suitable for many screening applications in numerous industries.Look at the bellow picture, you can find the adbantage of the wedge wire screen by yourself. Wedge Wire flat wedge wire screen panel construction produces high strength and extended service life suitable for many screening applications in numerous industries.
1) Widely used in vairous kinds of medium filtering
2) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4) The organic solution recycling filter
Wedge Wire flat wedge wire screen panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.
| SS flat wedge v wire screen panel | |
| Material: | Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.) |
| Wedge Wire (mm): | Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
| Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 | |
| Support Rod (mm): | Width : 2.30 3.00 3.30 3.70 |
| Height : 2.70 3.60 4.70 5.60 6.30 | |
| Width: | from 1 inch -----45 inch. |
| Length: | lengths up to 6 meters. |
| Slot size: | 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
| Round : | 2.50mm -- 6.0mm |
| Note: Other specifications can be customized according to your requirement | |
Package: in wood case
Delivery: 10-20 days
