Wedge Wire Screens plate

Product Code: 2203
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve plate screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wedge Wire Screens plate


    Wedge Wire wedge wire water well filter screens are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Wedge Wire wedge wire water well filter screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

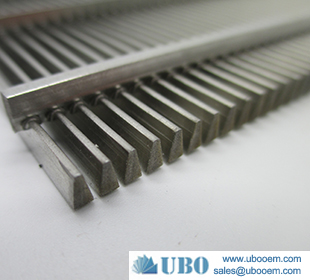

Wedge Wire Screens plate

Application for Wedge Wire Screens plate:

Vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.

Advantages for Wedge Wire Screens plate:

Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
Low pressure-drop.
Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.
High efficiency: continuous slot opening.
Large flow rate: “v” shaped profile wire ensures a uninterrupted flow

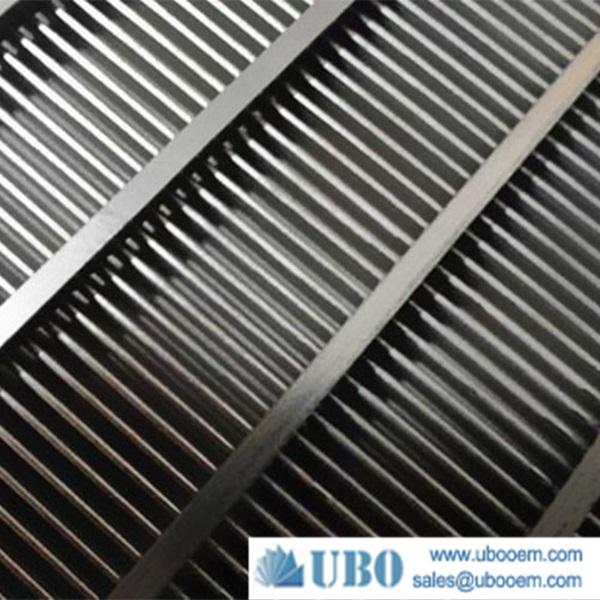

Wedge Wire Screens plate

Specification of the Wedge Wire Screens plate


Wedge Wire Screens plate



Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.
