Wedge Wire Collector

Product Code: 2700
Category:Header-Lateral
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Wedge Wire Collector


Wedge Wire Collector are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters, and in many water and wastewater treatment applications.

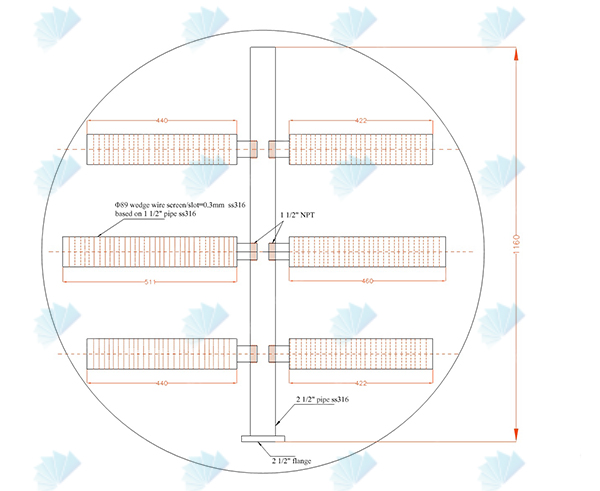

Wedge Wire Collector systems (shown above) may have multiple tiers of wedgewire screen laterals. Wedge Wire Collectors are available for larger diameter filters. Wedgewire screen laterals make excellent collectors.  A perforated pipe distributor can be added to improve back- wash distribution and increase strength. Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside for flow from outside to inside.    Or they can be positioned axially on the inside of the cylinder (see above) for flow from inside to outside.

Economical wedgewire screen nozzles can be used as collectors in false bottom (tube sheet) vessel installations.

Advantage of Wedge Wire Collector

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life

Application of Wedge Wire Collector

The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

Wedge Wire Collector

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the Wedge Wire Collector




Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150
