|Category:||Water Strainer & Nozzle|
|Material:||stainless steel 304,304L,304HC,316,316L,321,430 or as per your request|
|Application:||solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater|

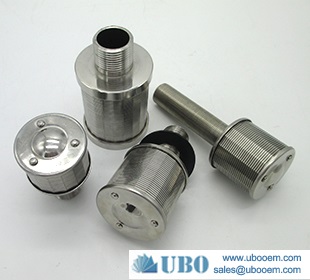

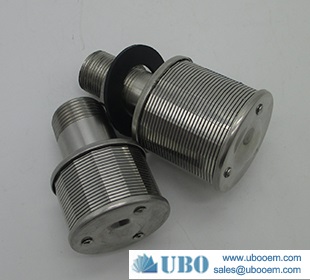

Filter For Water Treatment Wedeg Wire Screen Nozzle are used in liquid/solid or gas/solid separation. The wedge wire screen design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow thus almost eliminating the channeling, wall effects or dead zones.
Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters,ion exchange processes Sand filters, Activated carbon processes . Nozzles can also be used as collectors at the bottom of the vessels by installing a number of nozzles uniformly across a tray plate. The combination of high open area and a non-plugging slot design makes this nozzle/collector application popular.
The SS water well wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. It can be widely used in in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry. Also it can replace the Polypropylene ( PP ) filter, sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
|UBO-0.5||0.25||45||45||90/request||M,NPT, G, PT(BSPT),Z,BSP, request||
* All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement
