Stainless steel water distributor for filter tanks

Product Code: 3350
Category:Header-Lateral
Material:stainless steel 302,304,316,316L
Properties:Profile screen laterals
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless steel water distributor for filter tanks

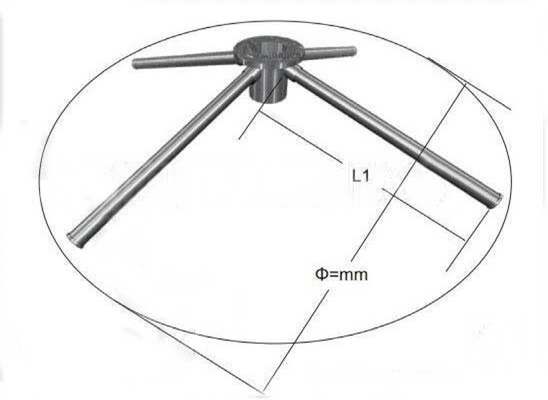

The stainless steel water distributor for filter tanks also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications. It is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

Stainless steel water distributor for filter tanks

Advantage of the stainless steel water distributor for filter tanks

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life

Application of the stainless steel water distributor for filter tanks

There are many forms in our platoon , cross , fish -shaped, straight tube , widely used in water treatment plant equipment , petroleum , chemical, pharmaceutical , food, sewage treatment, water plants and other industries , is the water treatment equipment and water installations in the key components in mechanical filter widely applied in particular , can also be used in co-current regeneration of ion exchangers into the acid , alkali plant .

According to user specific process conditions , well-designed package into the drag coefficient acid , alkali plant to make renewable liquid evenly distributed. While also preventing clogging due to the resin into the acid , alkali plant branch outlet orifice , causing jet pumping acids, alkalis difficult phenomenon.

Specification of the Stainless steel water distributor for filter tanks


Stainless steel water distributor for filter tanks

No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter direction

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO

Production And Sales of Stainless steel water distributor for filter tanks


Stainless steel water distributor for filter tanks
