| Category: | Wedge Wire Screen Cylinders |
| Material: | SS201 |
| Properties: | wedge wire screen |
| Application: | for dewatering |

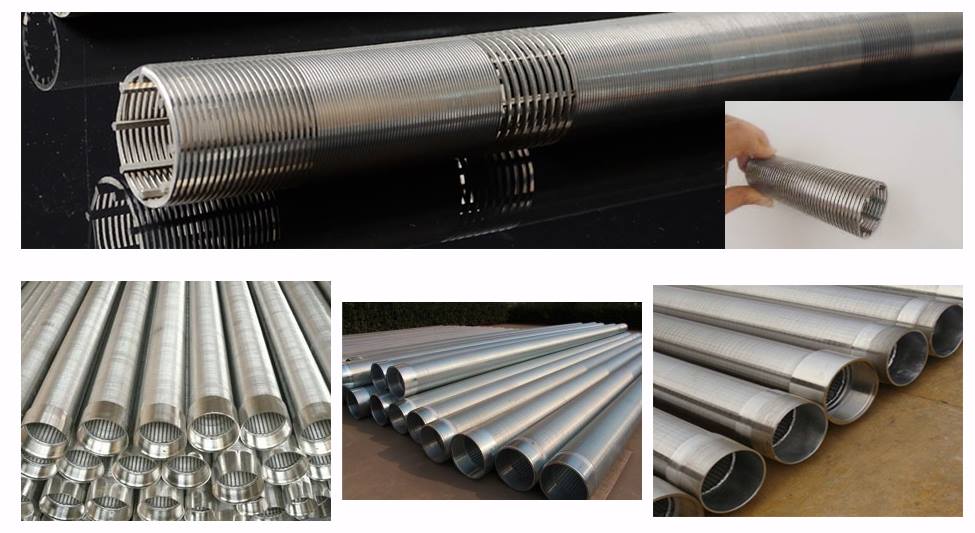

Support wire is mainly triangle wire ( wedge wire ) or round wire.
Mainly material : SS 201 , SS202 , SS302 , SS304 , SS304L, SS316, SS316L, SS316HC , SS321 , SS340 .
OD range: 20-640mm.
slot starting from: 0.02mm
SS201 sand control screen for dewatering could connect different type joint. such as :
one side is internal thread , the other side is external thread
Both side without thread
connected different specification oil coupling
connect different sizes and types flange
Main use as direct filter elements in reversible flow filters and wedge type filters for numerous applications:
-- Beverage industry
-- Oil, cooling liquids & fuel filtration
-- Chemical industry
-- Water purification
-- power plants
-- mechanical engineering
Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait;
Poland ; Holland ; Bulgaria ; Macedonia ;
The USA ; Australian ; Brazil ; Romanian ;
Saudi Arabia ; Iran ; Thailand ; Pakistan ; South Africa;
Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters. |
|
Diameter |
from 25mm to 1200mm. |
|
End connection |
Plain beveled ends, flanged or threaded couplings |
