Resin Traps

Product Code: 2249
Category:Resin Traps
Material:Stainless steel 316
Properties:wedge wire screen cylinders
Application:ore choosing,petroleum,chemical,water,plastics,food

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Resin Traps


UBO offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings.

UBO  Screen resin traps provide a high percentage of open area thus minimizing pressure loss through the system. Your resin trap can be designed to suit either new or existing strainer bodies.

Resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. UBO offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Feature of Resin Traps

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

Application of Resin Traps

1. feedstock oil backwash cleaning filter device in the system for petrochemical hydrogenation
2. precious metals catalysts recovery for hydrogenation system
3. Catalytic outer rejection oil automatic backwash cleaning filter system
4. purification of liquid sulphur filter
5. lubricants and heat-conducting oil filter
6. paraffin raw materials and products of filter
7. the rich amine liquid backwash purification filter in the amine desulfurization system
8. high-temperature coal gas, smoke gas and oil gas purification
9. raw materials of paraffin wax and backwash purification filter
10.the gas-liquid mixing pressurized reverse washing efficiency continuous filtration technology.

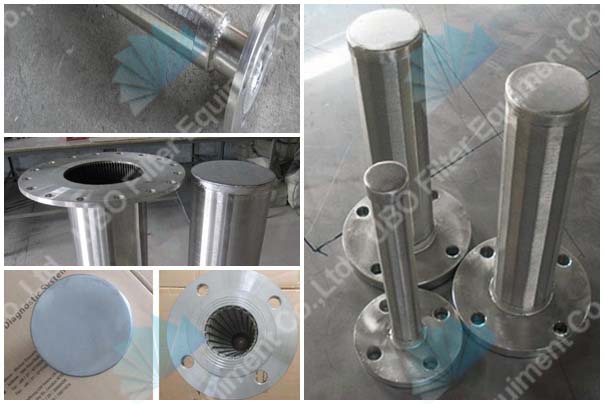

Resin Traps

Ubo Filter Co.,Ltd is specialized in producing and distributing Mine  sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,V shaped wire  welded screens,Spiral screen tube,Wire-wrap screen pipe,Mine screen mesh,Screen cylinders,Vibrating sieve  screen plate.
 Welcome to contact us for more information and cooperation.0086-0311-83289301

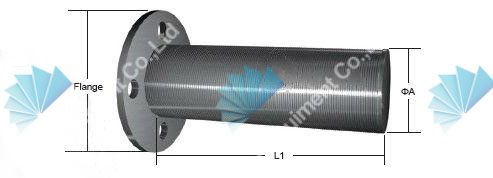

Specification of the Resin Traps


Item/DN

DN80

DN100

DN125

DN150

DN200

DN250

Capacity(T/H)

25

45

70

100

170

270

Model

SB80.25A

SB100.45A

SB125.70A

SB150.100A

SB200.170A

SB250.270A

L

524

600

730

850

1000

1160



219

245

273

351

402

450

DN1

80

100

125

150

200

250

DN2

25

25

25

25

25

25

Weight(Kg)

59

68

73

114

204

264

Resin Traps

Production And Sales of Resin Traps


transportation
