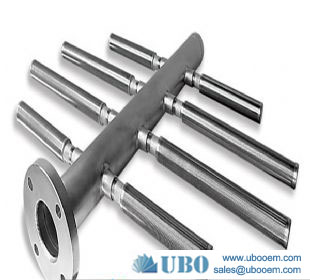

Profile Screen Header Hub Lateral

Product Code: 3156
Category:Header-Lateral
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:Water Strainer & nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of Profile Screen Header Hub Lateral


Profile Screen Header Hub Laterals are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

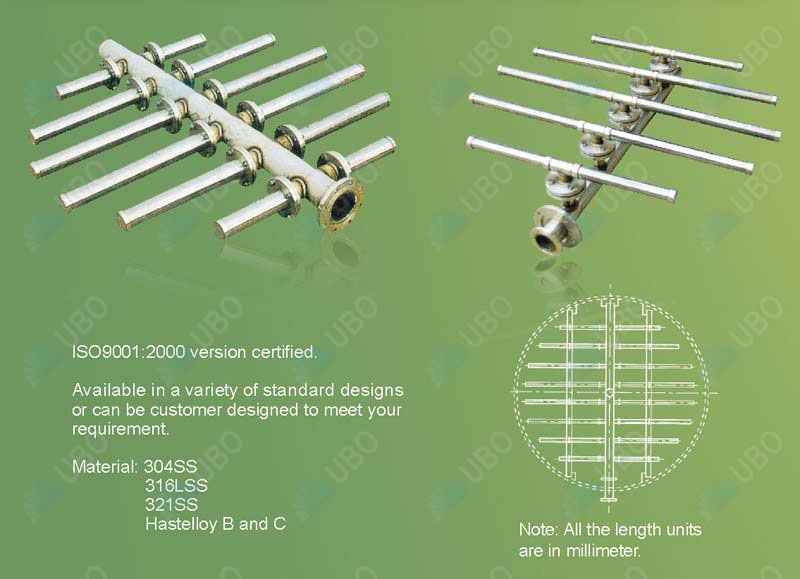

Header Hub Lateral


Applications for Profile Screen Header Lateral:


Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.


Advantages for Profile Screen Header Lateral:


-- High open area

-- Quick filtration

-- Economical solution, also for refurbishing of existing lauter tuns

-- Accurate filter rating

-- Longer service life

-- Low maintenance costs

-- Possible to build-in in existing equipment(custom made)


Types for Profile Screen Header Lateral:

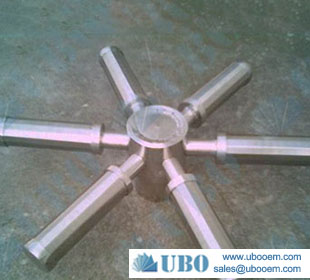

The header lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design makes it possible to suit different applications and machines.

Specification of the Profile Screen Header Hub Lateral

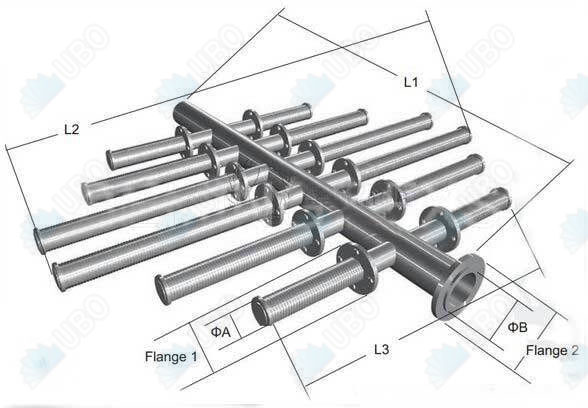

Header Hub Lateral

Wedge wire Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support rod Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6m
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings

Production And Sales of Profile Screen Header Hub Lateral


Package: in wood case

Delivery Time: 5-25 days.
