Looped Wedge Wire Screens

Product Code: 2200
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve plate screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Looped Wedge Wire Screens


Looped Wedge Wire is made from round wire which is first looped at regularly pitched intervals and then pressed into a deep wedge shaped section. The loops themselves are pressed so as to produce at each side accurately sized spacing shoulders which butt together when the wires are assembled. The width of the slot apertures in the finished panel is determined by the difference between the width of the top face of the wedge profile and the width over the spacing shoulders. The individual Wedge Wires are built into panels by feeding cross rods of suitable diameter through the loops of the wires.

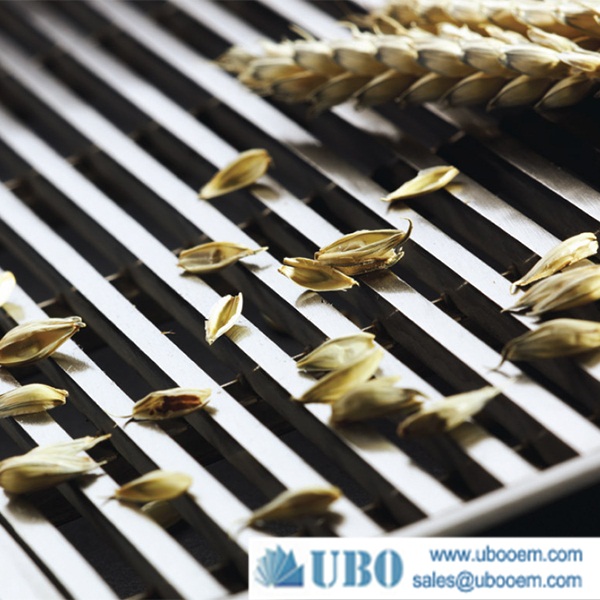

Looped<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a>s


Applications for Looped Wedge Wire Screen:


Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.


Advantages for Looped Wedge Wire Screen:


A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

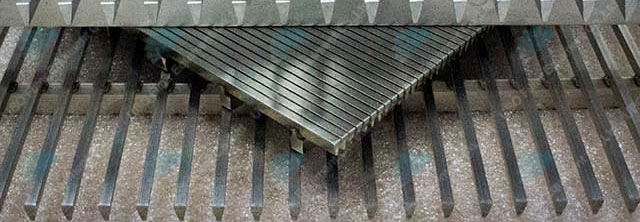

Looped<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a>s

Specification of the Looped Wedge Wire Screens

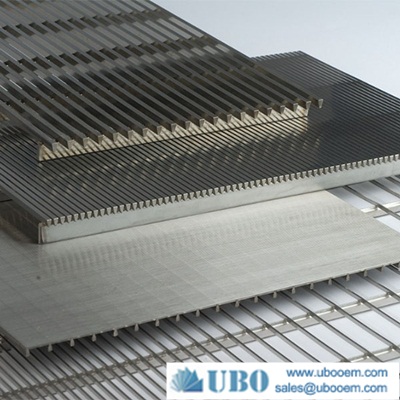

Looped<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a>s


V-Wire Wrap Water Well Screen
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter Ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot Size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Production And Sales of Looped Wedge Wire Screens


Package: in wood case.

Delivery Time: 5-15 days.
