Dewatering Screen Panel

Product Code: 2241
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Dewatering Screen Panel

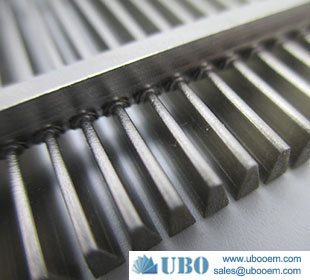

     DSM sieve bends screen is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Used for Dewatering Screen Panel:

Wedge wire sieves are used in mineral processing plants and food processing plants for sizing and washing. These industrial profile wire screens are also used to process corn for ethanol and corn starch, as well as to process sugar, animal waste and fertilizer.

Features for Dewatering Screen Panel:

Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Dewatering Screen Panel

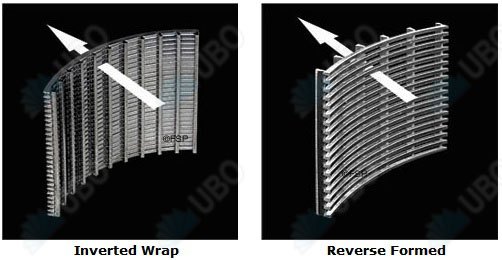

Specification of the Dewatering Screen Panel


Dewatering Screen Panel

Specification

Material:

AISI304/316/316L,Galvanized low carton.

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Slot /opening Size

0.10 -- 6.00mm ,also can be customized as your request.

Lengt/Width

Can be customized as your request

Diameter

25mm -- 1200mm.

Note:Other specifications can be customized according to your requirement.

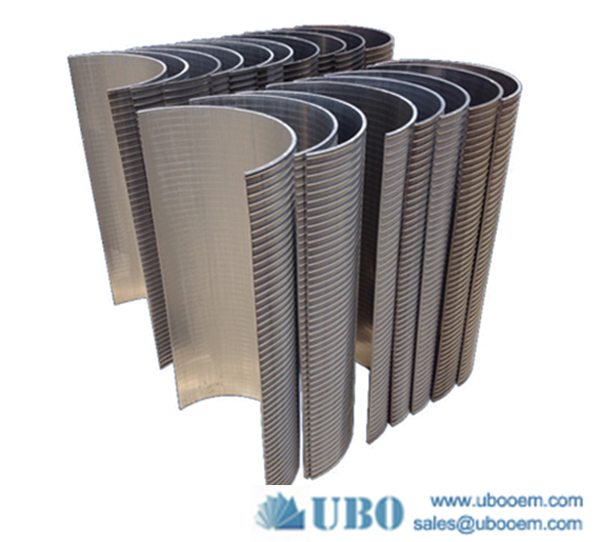

Production And Sales of Dewatering Screen Panel


Dewatering Screen Panel
