316L economical wedge wire screen nozzle chemical industry filtration

Product Code: 2193
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:water strainer&nozzle
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

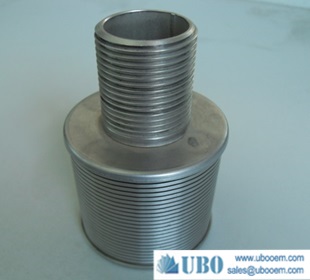

Description of 316L economical wedge wire screen nozzle chemical industry filtration

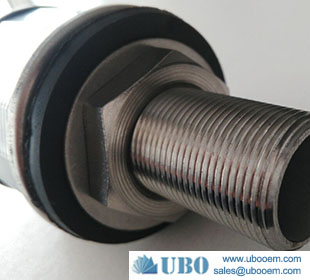

Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Application for 316L economical wedge wire screen nozzle chemical industry filtration:

The stainless steel wedge wire 316L water screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for 316L economical wedge wire screen nozzle chemical industry filtration:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

wedge wire filter nozzles for irrigation system

Specification of the 316L economical wedge wire screen nozzle chemical industry filtration


wedge wire filter nozzles for irrigation system



Catalogue Item Slots mm Thread ΦAmm Thread length L1mm Shaft  L2 mm L3 mm
Type B 0.05, 0.1, 0.2, 0.3 , 0.5, 1.0 1¼"WW 32 25,30,45 80,110,
40,200,
250,300,
350,…
45,50,55,
 60,70,80
M30 30*3.5 30
G 3/4" 26.5 20,45,+5+5...
1"WW 25.4 20,45,+5+5...
M24 24 20,45,+5+5..

Production And Sales of 316L economical wedge wire screen nozzle chemical industry filtration


316L economical wedge wire screen nozzle chemical industry filtration
