316L economical wedge wire screen nozzle chemical industry filtration

Product Code: 2459
Category:Water Strainer & Nozzle
Material:316L
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of 316L economical wedge wire screen nozzle chemical industry filtration

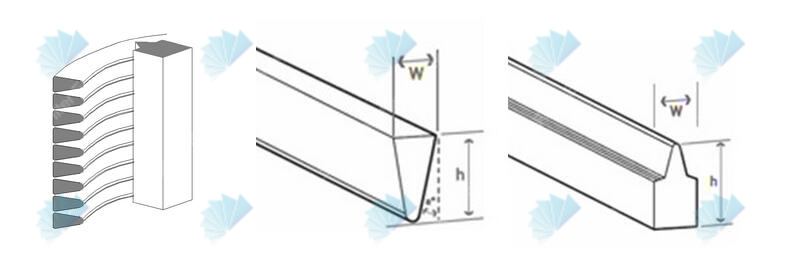

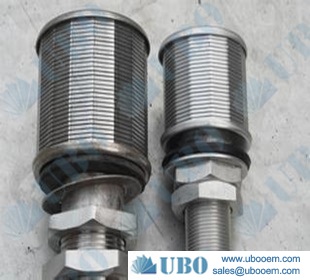

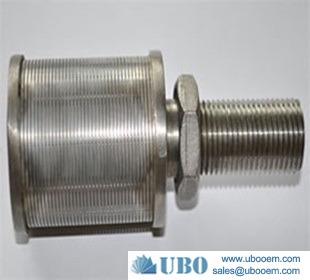

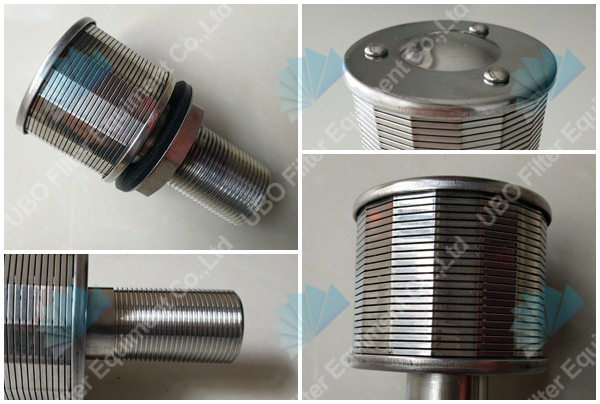

Water wedge wire screen filter nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

316L economical wedge wire screen nozzle chemical industry filtration

Advantages of 316L economical wedge wire screen nozzle chemical industry filtration

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Application of 316L economical wedge wire screen nozzle chemical industry filtration

The stainless wedged screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

316L economical wedge wire screen nozzle chemical industry filtration

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the 316L economical wedge wire screen nozzle chemical industry filtration


Outer diameter: min 30mm
Wedge wire screen length: 30-100mm
Screw thread: Male/Female
Used for bottom strainer, 20 pcs of small filter nozzles attached to plate steel.Flow capacity of one pieces of filter nozzle could handle 3 m3/hour. Up to this flow capacity, almost no pressure loss happened.But to handle higher flow capacity,
the pressure loss of each nozzle will be increasing accordingly. This fillter nozzle type is the cheapest sellection for filter media retention.

No.

Slot

Dimension

Flow area/mm2 (Slot: 0.2mm)

D

H

L

M

L1

1

0.2-0.5

45

30

180

25

According to custom's request

330

2

45

40

190

25

450

3

53

40

190

30

500

4

53

50

200

30

630

5

53

40

235

32

500

6

57

40

190

32

605

7

57

50

200

32

750

Production And Sales of 316L economical wedge wire screen nozzle chemical industry filtration


Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0318-5183242.
