Sintered Multi-mesh filter

Product Code: 2293
Category:Cylinder Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:cylinder filter
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

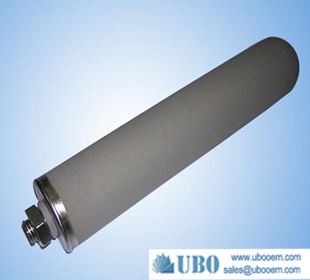

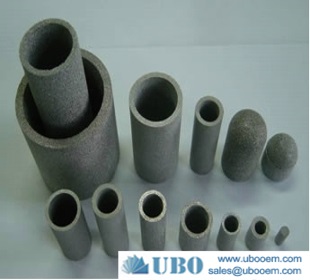

Description of Sintered Multi-mesh filter


    Stainless steel cylinder filter element is available by variety of styles to satisfy customer requirements. We design it according to micron rating, differential pressure, product characteristics, on stream life requirements, disposability, and cleaning method. The filter media included metal fiber felt, muti-layer metal mesh, metal wire mesh, and others. It can be provided as a flat wrap for making cylindrical filters elements or pleated for making pleated filter elements.

Application for Sintered Multi-mesh filter:

The filter has been widely used in transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant, coal carbon, mining, pharmaceutical, food and engineering industries.

Advantage for Sintered Multi-mesh filter:

a. Complex structure, high filtering precision
b. Large dirt holding capacity, long service life time
c. Good corrosion resistance and pressure resistance
d. Increased flow quantity per unit area
e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.

Sintered Multi-mesh filter

Specification of the Sintered Multi-mesh filter


Mesh/Inch Wire Diameter(mm) Screen Thickness(mm)
105 0.075 0.14
120 0.08 0.15
150 0.06 0.115
165 0.05 0.095
180 0.045 0.085
200 0.04 0.1
230 0.036 0.085
250 0.036 0.088
270 0.035 0.083
300 0.03 0.07
325 0.028 0.065
350 0.03 0.06
400 0.023 0.040
450 0.023 0.042

Production And Sales of Sintered Multi-mesh filter


Sintered Multi-mesh filter
